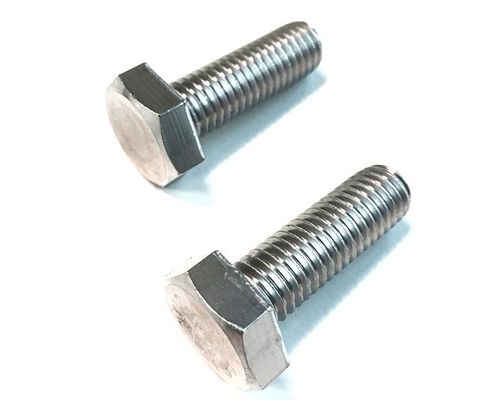

ISO4017 304 Stainless Steel Hex Head Bolt Heavy Full Thread
Product Summary
ISO4017 Stainless Steel Hex Head Bolt / SS304 Heavy Hex Head Bolt / Full Thread Stainless Hex Bolts 1. Standard: ISO 4017 2. Head type: Hex Head 3. Size: M1.6-M64 4. Length: 1.2mm-500mm 5. Material: Stainless Steel SS304 6. Finish: Passivated 7. Delivery time: Normally in 5-20 days 8. Package: ...
Basic Properties
country of origin
China
Brand Name
FLRS or OEM
certificate
ISO9001
PRODUCT MODEL
FLRS-H001
Trading Properties
MOQ
1 piece
unit price
USD0.1-2/PC
payment method
T/T， L/C， Western union， paypal
Supply Capacity
100tons/month
Product Custom Attributes
Highlight
Stainless Steel Full Thread Hex Bolts
,Full Thread Heavy Hex Bolt
,Stainless Hex Head Bolts 304
Product Name:
Hex. Bolt
Standard:
ISO 4017
Head Type:
Hex.
Thread:
Full Thread
Material:
SS304
Process:
Cold Pier
Product Description
Detailed Specifications & Features
ISO4017 Stainless Steel Hex Head Bolt / SS304 Heavy Hex Head Bolt / Full Thread Stainless Hex Bolts
1. Standard: ISO 4017
2. Head type: Hex Head
3. Size: M1.6-M64
4. Length: 1.2mm-500mm
5. Material: Stainless Steel SS304
6. Finish: Passivated
7. Delivery time: Normally in 5-20 days
8. Package: Cartons&pallets or according to customer's requirement
| Mon | M1.6 | M2 | M2.5 | M3 | M3.5 | M4 | M5 | M6 | M8 |
| p | 0.35 | 0.4 | 0.45 | 0.5 | 0.6 | 0.7 | 0.8 | 1 | 1.25 |
| da max | 2 | 2.6 | 3.1 | 3.6 | 4.1 | 4.7 | 5.7 | 6.8 | 9.2 |
| e min | 3.41 | 4.32 | 5.45 | 6.01 | 6.58 | 7.66 | 8.79 | 11.05 | 14.38 |
| k max | 1.225 | 1.525 | 1.825 | 2.125 | 2.525 | 2.925 | 3.65 | 4.15 | 5.45 |
| k min | 0.975 | 1.275 | 1.575 | 1.875 | 2.275 | 2.675 | 3.35 | 3.85 | 5.15 |
| r min | 0.1 | 0.1 | 0.1 | 0.1 | 0.1 | 0.2 | 0.2 | 0.25 | 4 |
| max | 3.2 | 4 | 5 | 5.5 | 6 | 7 | 8 | 10 | 13 |
| s min | 3.02 | 3.82 | 4.82 | 5.32 | 5.82 | 6.78 | 7.78 | 9.78 | 12.73 |
| Mon | M10 | M12 | M14 | M16 | M18 | M20 | M22 | M24 | M27 |
| p | 1.5 | 1.75 | 2 | 2 | 2.5 | 2.5 | 2.5 | 3 | 3 |
| da max | 11.2 | 13.7 | 15.7 | 17.7 | 20.2 | 22.4 | 24.4 | 26.4 | 30.4 |
| e min | 17.77 | 20.03 | 23.36 | 26.75 | 30.14 | 33.53 | 37.72 | 39.98 | 45.2 |
| k max | 6.58 | 7.58 | 8.98 | 10.18 | 11.715 | 12.715 | 14.215 | 15.215 | 17.35 |
| k min | 6.22 | 7.32 | 8.62 | 9.82 | 11.285 | 12.285 | 13.785 | 14.785 | 16.65 |
| r min | 0.4 | 0.6 | 0.6 | 0.6 | 0.6 | 0.8 | 0.8 | 0.8 | 1 |
| max | 16 | 18 | 21 | 24 | 27 | 30 | 34 | 36 | 41 |
| s min | 15.73 | 17.73 | 20.67 | 23.67 | 26.67 | 29.67 | 33.38 | 35.38 | 40 |
