Nom size	d		h		d1 min	Weight(kg/1Kpcs)	Nom size	d		h		d1 min	Weight(kg/1Kpcs)
Nom size	max	min	max	min	d1 min	Weight(kg/1Kpcs)	Nom size	max	min	max	min	d1 min	Weight(kg/1Kpcs)
15	13.9	13.44	1	0.94	1.7	0.67	48	44.89	43.6	1.75	1.69	2.5	7.9
16	14.8	14.34	1	0.94	1.7	0.7	50	46.19	44.9	2	1.93	2.5	10.2
17	15.8	15.34	1	0.94	1.7	0.82	52	48.19	46.9	2	1.93	2.5	11.1
18	16.6	16.14	1.2	1.14	2	1.11	55	51.26	49.7	2	1.93	2.5	11.4
19	17.6	17.14	1.2	1.14	2	1.22	56	52.26	50.7	2	1.93	2.5	11.8
20	18.63	18.08	1.2	1.14	2	1.3	58	54.26	52.7	2	1.93	2.5	12.6
21	19.63	19.08	1.2	1.14	2	1.42	60	56.26	54.7	2	1.93	2.5	12.9
22	20.63	20.08	1.2	1.14	2	1.6	62	58.26	56.7	2	1.93	2.5	14.3
24	22.41	21.78	1.2	1.14	2	1.77	63	59.26	57.7	2	1.93	2.5	15.9
25	23.41	22.78	1.2	1.14	2	1.9	65	61.26	59.7	2.5	2.43	3	18.2
26	24.41	23.78	1.2	1.14	2	1.96	68	63.96	62.4				21.8
28	26.11	25.48	1.5	1.44	2	2.92	70	65.96	64.4				22
29	27.11	26.48	1.5	1.44	2	3.2	72	67.96	66.4				22.5
30	28.11	27.48	1.5	1.44	2	3.31	75	70.96	69.4				24.6
32	29.81	29.18	1.5	1.44	2.5	3.54	78	73.96	72.4				26.2
34	31.75	31	1.5	1.44	2.5	3.8	80	74.96	73.4				27.3
35	32.45	31.7	1.5	1.44	2.5	4	82	76.96	75.4				31.2
36	33.45	32.7	1.75	1.69	2.5	5	85	79.96	78.4	3	2.92	3.5	36.4
38	35.45	34.7	1.75	1.69	2.5	5.62	88	83.04	81.2				41.2
40	36.89	35.6	1.75	1.69	2.5	6.03	90	85.04	83.2				44.5
42	38.89	37.6	1.75	1.69	2.5	6.5	95	90.04	88.2				49
45	41.89	40.6	1.75	1.69	2.5	7.5	100	95.04	93.2				53.7

Tags:

galvanized steel washers

spherical washer

thin flat washers

Products Details

Home > Products >

Plain Washer

Spring Steel DIN 471 External Circlips Retaining Rings For Shafts

All Category

Mechanical Fasteners

Hex Head Bolt

Double Ended Bolt

Round Head Bolt

Countersunk Head Bolt

Foundation Anchor Bolts

Self Tapping Metal Screws

Hexagon Lock Nut

Hex Flange Nut

Plain Washer

Spring Lock Washer

Bolt And Nut Assembly

Flange

Metal Self Drilling Screw

Spiral Wound Gasket

Steel Pipe Fitting

Pressure Vessel Dished Ends

Galvanized Seamless Steel Pipe

Forging And Casting

Compression Spring

Spring Steel DIN 471 External Circlips Retaining Rings For Shafts

Brand Name:	FLRS or　OEM
Model Number:	FLRS-RR003
MOQ:	1 piece
Payment Terms:	L/C, T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Brand Name:

FLRS or　OEM

Certification:

ISO9001

Model Number:

FLRS-RR003

Standard::

DIN

Style:

External

Type:

Normal

Material:

Spring Steel

Size:

15-100

Color:

Black

Minimum Order Quantity:

1 piece

Payment Terms:

L/C, T/T

Highlight:

15mm External Retaining Rings

DIN 471 Circlips Retaining Rings

14mm Circlips Retaining Rings

Product Description

Spring Steel DIN 471 Circlips Retaining Rings For Shafts / external retaining rings (9＜d≤300mm)

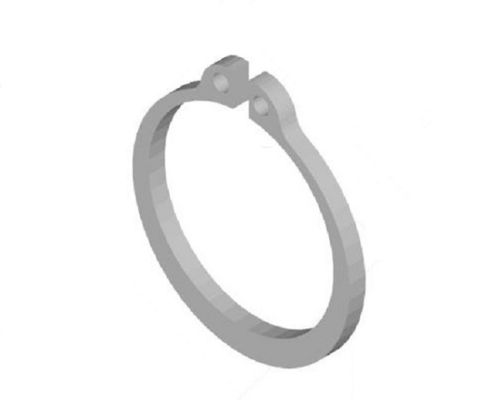

The retaining ring for shaft is a kind of retaining ring installed on the grooved shaft and used for the axial movement of the fixed parts. The inner diameter of this kind of retaining ring is slightly smaller than the diameter of the assembled shaft. When installing, use circlip pliers to insert the pliers mouth into the clamp hole of the retaining ring, expand the retaining ring, and then put it into the pre-processed shaft groove. Conventional packaging uses oiled paper or plastic as a batch packaging, and the surface is generally phosphated and blackened, commonly known as wild card. There are several aspects that need to be paid attention to when producing the shaft retaining ring; one is the surface is flat; the second is the hardness and elasticity is qualified; the third is that there is no corner burr, domestic manufacturers have high-quality hardware, and have the mature technology of the retaining ring.
