Custom Dimension Inconel 625 Flat Washer with High Temperature and Corrosion Resistance for Mechanical Fastening

Brand Name:	FLRS/OEM
Model Number:	FLRS-W001
MOQ:	100 pcs
Payment Terms:	T/T,L/C,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO 9001

Compliance Standards:

ISO, DIN, ANSI, ASTM, SAE

Corrosion Resistance:

Standard, Corrosion Resistant, Stainless Steel

Available

Application:

Automotive, Construction, Electronics, Aerospace, Machinery

Packing:

Carton+pallet

Temperature Range:

-40°C To 150°C (standard), Up To 600°C (special Alloys)

How To Use:

Matched With Bolts And Nut

Highlight:

Custom Dimension Flat Washer

Corrosion Resistant Inconel 625 Washer

High Temperature Resistance Mechanical Fastener

Product Description

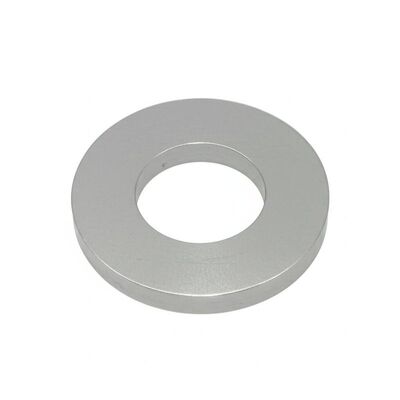

Customized Dimension Inconel 625 Flat Washer

As a trusted manufacturer with 6+ years of expertise in high-alloy fasteners, we specialize in custom-engineered Inconel 625 flat washers that redefine reliability in extreme environments. Our washers merge the unparalleled corrosion resistance of Inconel 625 (UNS N06625) with precision-machined custom dimensions, tailored to your exact project requirements. Backed by ASTM/ASME compliance and ISO 9001 certification, we deliver solutions that outperform standard washers in aerospace, oil & gas, and chemical processing—ensuring zero leakage, long-term durability, and cost savings on maintenance.

Product Overview

Our customized Inconel 625 flat washers are circular load-distribution components crafted from nickel-chromium-molybdenum superalloy, designed to eliminate fastener-induced surface damage and enhance assembly stability. Unlike off-the-shelf options, we offer full dimensional customization—from micro-sized washers for aerospace engines to heavy-duty variants for offshore platforms—all adhering to global standards like DIN 125, ISO 7089, and ASME B18.22.1. The Inconel 625 alloy's unique composition forms a protective oxide layer, resisting corrosion from seawater, sulfuric acid, and chloride ions even at temperatures up to 2000°F (1093°C).

Customization & Specifications

Material	Inconel 625 (UNS N06625, Werkstoff Nr. 2.4856)
Standards	ASTM B443/ASME SB443, ASTM A166/SA 166
Custom Dimensions	Inner Diameter: 2mm-100mm; Outer Diameter: 5mm-200mm; Thickness: 0.5mm-20mm
Processing	CNC-machined, cold-forged, punched (per volume requirements)
Surface Finish	Bright annealed, pickled, or custom coatings (e.g., PTFE)
Tolerance	±0.01mm (critical dimensions)

Material Properties (Inconel 625)

The superior performance of our washers stems from Inconel 625's exceptional characteristics:

Chemical Composition (key elements): Ni (≥58%), Cr (20-23%), Mo (8-10%), Nb (3.15-4.15%), Fe (≤5%)
Mechanical Strength: Tensile Strength: ≥965 MPa; Yield Strength: ≥415 MPa; Elongation: ≥30%
Environmental Resistance: Withstands cryogenic temperatures to 2200°F; Resists pitting, crevice corrosion, and oxidation; Unaffected by seawater and industrial chemicals

Core Advantages

Tailored Precision: Custom dimensions fit unique assembly needs—no more compromising on standard sizes
Extreme Durability: Maintains strength in high-heat/corrosive environments, reducing replacement frequency by 60%
Versatile Compatibility: Works with bolts/nuts of all grades, ideal for multi-material assemblies
Rapid Turnaround: Sample production in 3-5 days; mass orders delivered in 10-25 days

Typical Applications

Our washers are trusted in mission-critical sectors:

Aerospace: Aircraft engine components, satellite assemblies
Oil & Gas: Offshore platforms, subsea pipelines, wellhead equipment
Chemical Processing: Reactor flanges, acid-handling pipelines
Marine/Navy: Submarine hulls, seawater valves
Nuclear Power: Reactor core fasteners, control rod assemblies

Quality & Logistics

Quality Control: Raw material traceability, ultrasonic testing, and corrosion resistance verification (per ASTM G48)
Packaging: Vacuum-sealed bags + plywood crates (moisture-proof for marine shipping)
Certifications: NACE MR0175, RoHS, and material test reports (MTRs) included
Payment Terms: T/T, L/C, PayPal (50% deposit, balance before shipment)

Need a custom Inconel 625 flat washer? Share your drawings or dimension requirements, and our engineers will provide a free quote within 24 hours.

Your Partner for Custom Fasteners That Withstand the Impossible.
