Double Ended Bolt

A193 B7 / A194 2H PTFE Coated Double Ended Bolt for Marine Petrochemical High Pressure High Temperature Applications

All Category

Galvanized Seamless Steel Pipe

Compression Spring

Fiona Hou

flrs@mechanical-fasteners.com

13384956386

Contact Now

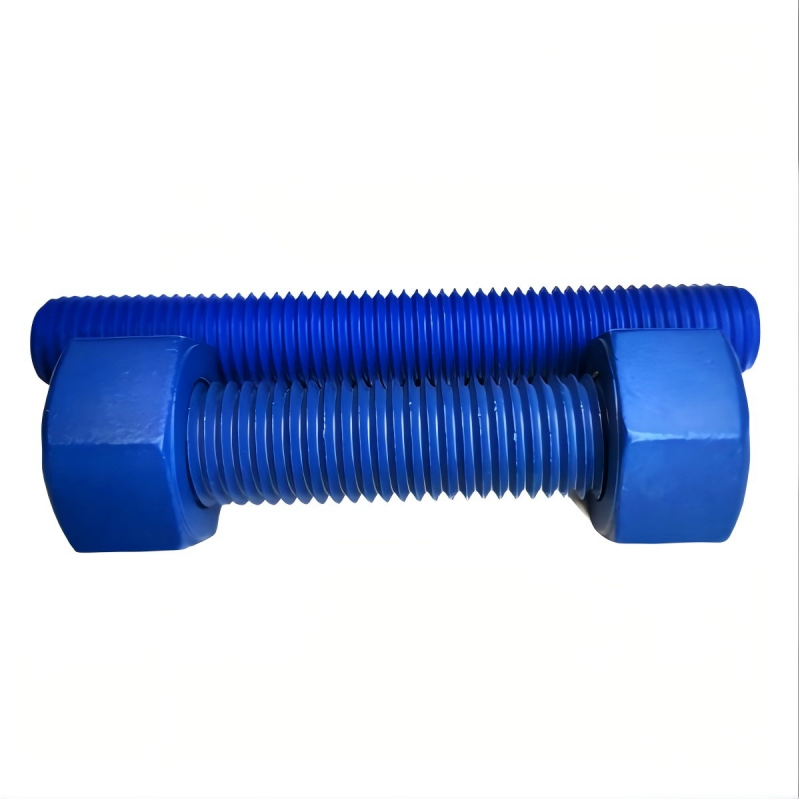

A193 B7 / A194 2H PTFE Coated Double Ended Bolt for Marine Petrochemical High Pressure High Temperature Applications

Brand Name:	FLRS or OEM
Model Number:	FLRS-S025
MOQ:	50 piece
Price:	usd 0.10-15.00 /Piece
Packaging Details:	carton/ plywood cases/plywood pallets
Payment Terms:	T/T， L/C， Western union， paypal

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO 9001

Name:

Stud Bolts

Material:

A193 B7/ A194 2H

Standard:

ANSI/ASME

Finish:

Thread:

Colour:

Blue, Red, Yellow, Green

Supply Ability:

60 tons/month

Highlight:

PTFE Coated Corrosion Resistant

A193 B7 Alloy Steel

High Pressure High Temperature

Product Description

A193 B7 / A194 2H PTFE Coated Double Ended Bolt for Marine Petrochemical High Pressure High Temperature Applications

XYLAN:

It is a registered trademark of high-performance fluoropolymer coatings manufactured by Whitford Corporation (USA). It is a PTFE-based anti-corrosion coating system. After proper surface pretreatment, the coating is sprayed onto metal substrates and thermally cured to form a protective film. It delivers reliable metal protection featuring high resistance to chemical corrosion and comprehensive functional advantages.

Data Sheet:

Standard	ANSI/ASME
Size	Standard and non-standard, customized
Material	Bolt: Alloy Steel (A193 B7); Nut: Carbon Steel (A194 2H)
Grade	A193 B7 / A194 2H
Thread	UNC
Finish	PTFE coating
Packing	Bulk in cartons on wooden pallets, or according to customer's special requirements.
Application	Marine & Offshore; Petrochemical; Structural Steel; Metal Building; Oil & Gas; Tower & Pole; Wind Energy; Machinery; Automobile
Supply Ability	About 60 tons per month
MOQ	50 pcs
Trade Term	FOB/CIF/CFR/EXW/DAP
Payment	T/T, L/C, Western Union, PayPal

Technical specifications:

Dry film thickness (fasteners): 20-25 microns

Structural components: 20-30 microns

Reduces make-up torque: approx. 70%

Coefficient of Friction: 0.08-0.11

Basecoat bond strength: 4,000 psi

Topcoat pencil hardness: 3H-8H

Adhesion (ASTM D3359): 4B-5B

Available colors: blue, red, yellow, green

Operating temperature range (PTFE coating): -195°C to +260°C; base material rated per ASTM A193 for elevated-temperature service
