PFTE Coating Double Ended Bolt / A193B7 /A1942H XYLAN Stud Bolts

Basic Information
Place of Origin: China
Brand Name: FLRS or OEM
Certification: ISO9001
Model Number: FLRS-S025
Minimum Order Quantity: 1 piece
Price: usd0.1-15 per pc
Packaging Details: carton/ plywood cases/plywood pallets
Delivery Time: 8-20days
Payment Terms: T/T, L/C, Western union, paypal
Supply Ability: 60tons/month
Detail Information
Name: Stud Bolts Material: A193 B7/ A194 2H
Standard: ANSI/ASME Finish: PTFE
Thread: UNC Colour: BLUE
High Light:

PTFE Stud Bolts

,

Double Ended Bolt A193B7

,

Double Ended Hexagonal Nut Bolt B7


Product Description

/ PFTE Coating Double Ended Bolt / A193B7 /A1942H XYLAN Stud Bolts



XYLAN:

It is a trademark of a coating produced by Walford in the USA and is a PTFE anti-corrosion coating, which is applied to the metal surface after surface treatment and is processed by spraying to protect the metal with excellent anti-corrosion properties: resistance to chemical corrosion and other properties.



Data Sheet:

Standard ANSI/ASME
Size Standard & non-standard, customized
Material Carbon Steel, Stainless Steel and Alloy Steel
Grade A193 B7 / A194 2H
Thread UNC
Finish PTFE coating
Packing Bulk in cartons on wood pallet or according to customer special demand.
Application Structural Steel; Metal Buliding; Oil&Gas; Tower&Pole; Wind Energy; Mechanical Machine; Automobile:
Supply Ability About 60 tons per month
MOQ 50pcs
Trade Term FOB/CIF/CFR/EXW/DAP
Payment T/T,  L/C , Western Union



Picture:

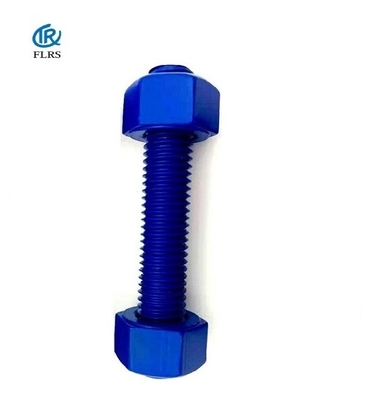

PFTE Coating Double Ended Bolt / A193B7 /A1942H XYLAN Stud Bolts 0

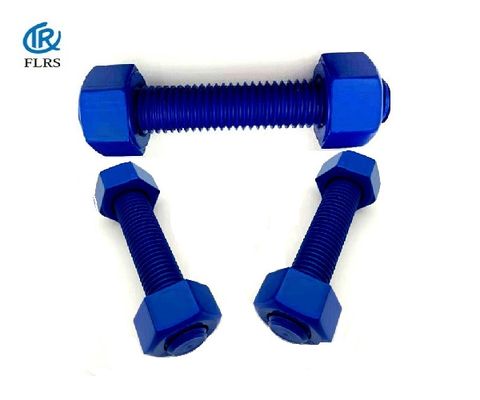

PFTE Coating Double Ended Bolt / A193B7 /A1942H XYLAN Stud Bolts 1



Technical specifications:

Dry Film Thickness: fasteners 涂层厚度 20-25microns
Components 工件涂层厚度 20-30microns
Reduces make up torque: 减小扭矩程度 70%
Coefficient of Friction: 摩擦系数 0.08-0.11
Basecoat bond strength: 底涂承受力度 4000Psi
Topcoat Pencil hardness: 顶涂铅笔硬度 3-8H
Adhesion ASTM D3359: 涂层附着力 4B,5B
Color:颜色蓝色,红色,黄色,绿色
Working temperatures: 工作温度 -195℃+260℃
