Carbon Steel Plain Washer PTFE Coated in Blue with Grade 4.8-12.9 and ISO/ASME/DIN/JIS/GB Standard
Product Summary
Carbon Steel Plain Washer PTFE Coated in Blue The plain washer, also called flat washer, is primarily stamped from an iron plate and typically shaped as a flat disc with a central hole. Basic Information About Plain Washers Plain washers are thin components of various shapes used to reduce friction, ...
Basic Properties
country of origin
China
Brand Name
FLRS or OEM
certificate
ISO9001
PRODUCT MODEL
FLRS-W015
Trading Properties
MOQ
1 00 pieces
payment method
T/T， L/C， Western union， paypal
Supply Capacity
100tons/month
Product Custom Attributes
Highlight
Grade 4.8-12.9 Plain Washer
,Blue Finish Flat Washer
,ISO/ASME/DIN/JIS/GB Standard Carbon Steel Washer
Material:
Carbon Steel
Standard:
ISO/ASME/DIN/JIS/GB
Size:
Standard Or Customized
Grade:
4.8,6.8,8.8,10.9,12.9
Finish:
/ Ptfe
C/W:
Bolts And Nuts
Heat Treatment:
Tempering, Hardening, Spheroidizing, Stress Relieving
Manufacturing Process:
Lath Machining, CNC Machining, Linear Cutting, Stamping Machining
Product Description
Detailed Specifications & Features
Carbon Steel Plain Washer PTFE Coated in Blue
The plain washer, also called flat washer, is primarily stamped from an iron plate and typically shaped as a flat disc with a central hole.
Basic Information About Plain Washers
Plain washers are thin components of various shapes used to reduce friction, prevent leakage, isolate components, prevent loosening, or distribute pressure. These versatile parts are manufactured from different materials and serve multiple functions in various structures.
Threaded fasteners have material and process limitations that prevent large bearing surfaces. Washers help reduce compressive stress on bearing surfaces and protect connected parts. Special washers like spring washers and lock washers prevent loosening of connections.
Plain washers primarily reduce compressive force. When tightening axial force is substantial, washers may deform. This can be addressed by using harder materials or increasing hardness.
US Standard Specifications for Flat Washers
| Specification | Minor Diameter (mm) | Outside Diameter (mm) | Thickness Tolerance (mm) | Thickness Range (mm) |
|---|---|---|---|---|
| USS 3/16 | 6.22～6.73 | 14.15～14.66 | 0.91～1.65 | 0.91～1.40 1.40～1.65 |
| USS 1/4 | 7.80～8.31 | 18.47～19.02 | 1.30～2.03 | 1.30～1.65 1.65～2.03 |
| USS 5/16 | 9.40～9.91 | 22.05～22.99 | 1.63～2.64 | 1.63～2.20 2.20～2.64 |
| USS 3/8 | 11.00～11.51 | 25.22～26.16 | 1.63～2.64 | 1.63～2.20 2.20～2.64 |
| USS 7/16 | 12.57～13.08 | 31.57～32.51 | 1.63～2.64 | 1.63～2.20 2.20～2.64 |
| USS 1/2 | 14.15～14.60 | 34.75～35.69 | 2.18～3.35 | 2.18～2.70 2.70～3.00 3.00～3.35 |
| USS 5/8 | 17.30～18.24 | 44.27～45.21 | 2.74～4.06 | 2.74～3.20 3.20～3.60 3.60～4.06 |
Functions of Plain Washers
- Increase contact area between bolts and machinery
- Prevent surface damage during spring washer unloading
- Proper installation requires spring washer between plain washer and nut, with plain washer against machine surface
Application Range
- Machinery and automotive industries
- Road, bridge, and tunnel construction
- Urban railway systems and high-speed railways
- Watercraft, thermal power, wind power, and nuclear power
- Petrochemical, aerospace, and steel roof constructions

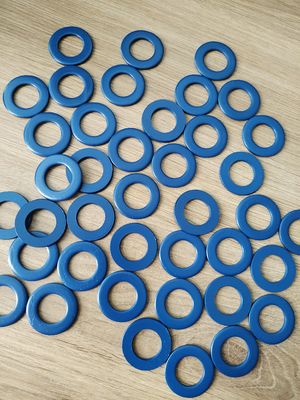

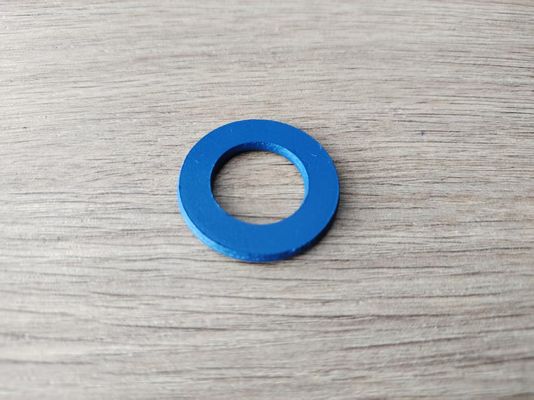

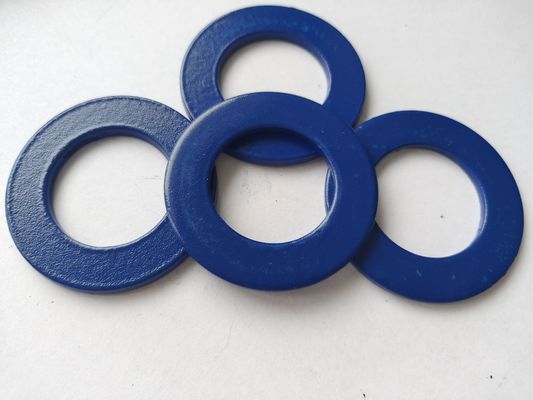

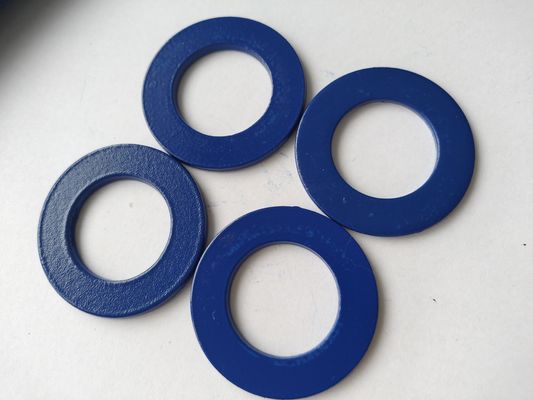

Product Images
