Stainless Steel 316 Octagonal Ring-Joint Gasket BX152 ASME B16.20 For API6A Pipe flange

Product Summary

Stainless Steel 316 Octagonal Ring-Joint Gasket BX152 ASME B16.20 For API6A Pipe flange The metal ring gasket is a solid metal gasket with an octagonal or elliptical cross-sectional shape processed from metal materials, which has a radial self-tightening sealing effect. Therefore, the metal ring ...

Quality Stainless Steel 316 Octagonal Ring-Joint Gasket BX152 ASME B16.20 For API6A Pipe flange factory
Quality Stainless Steel 316 Octagonal Ring-Joint Gasket BX152 ASME B16.20 For API6A Pipe flange factory
Quality Stainless Steel 316 Octagonal Ring-Joint Gasket BX152 ASME B16.20 For API6A Pipe flange factory
Quality Stainless Steel 316 Octagonal Ring-Joint Gasket BX152 ASME B16.20 For API6A Pipe flange factory
Basic Properties
country of origin
China
Brand Name
FLRS or OEM
certificate
ISO9001
PRODUCT MODEL
FLRS-RTJ013
Trading Properties
MOQ
5 piece
payment method
L/C, T/T, Western Union
Supply Capacity
100tons/month
Product Custom Attributes
Highlight

ASME B16.20 Octagonal Ring-Joint Gasket

,

SS 316 Octagonal Ring-Joint Gasket

Standard:
ASME B16.20
Material Grade:
SS316
Size:
From R11-R105
Hardness:
Less Than 90BHN
Shape:
Octagonal Ring
Pressure:
10000 Psi
Process:
Forged
Package:
Plywood Case
Corrosionresistance:
Excellent
Tags:
spiral metallic gasket inner ring gasket round gasket
Product Description
Detailed Specifications & Features

Stainless Steel 316 Octagonal Ring-Joint Gasket BX152 ASME B16.20 For API6A Pipe flange

The metal ring gasket is a solid metal gasket with an octagonal or elliptical cross-sectional shape processed from metal materials, which has a radial self-tightening sealing effect. Therefore, the metal ring gasket is in contact with the inner and outer sides (mainly the outer side) of the trapezoidal groove of the flange by the gasket, and the seal is formed by pressing. Metal ring gasket is used in pipe flanges, valves, pressure vessels, submarine, high-speed joint surface, high temperature and high pressure valve cover and other pressure joint.



Types:
Ring-joint gaskets shall be either octagonal or ovalin cross section.


Size:
Ring-joint gaskets shall be identifed by an R,RX,or BX number that relates to fange size (NPS),pressureclass,and the appropriate fange standards(ASMEB16.5,ASME B16.47,or API Specification 6A).





MAXIMUM HARDNESS FOR RING GASKETS
Ring Gasket Material Maximum Hardness
Brinell Rockwell "B"Scale
Soft iron 90 56
Low-carbon steel 120 68
4-6 chrome 1/2Mo 130 72
Type 410 170 86
Type 304 160 83
Type 316 160 83
Type 347 160 83

Main Features

1)There are a variety of materials and patterns to suit different design and operation requirements,
2)The new flat bottomed grooved flanges are interchangeable and can be supplied within the shortest possible time.
3)Note: the quality of the metal rings should be lower than the flange 15~20 HB, and the old products are not recommended to be reused.

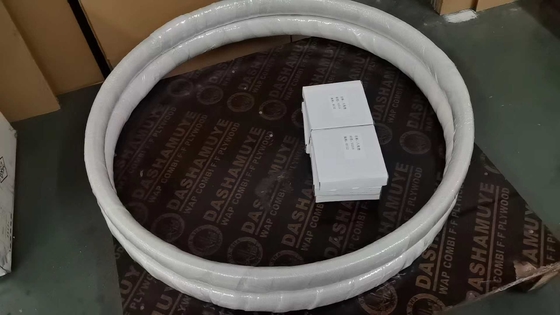

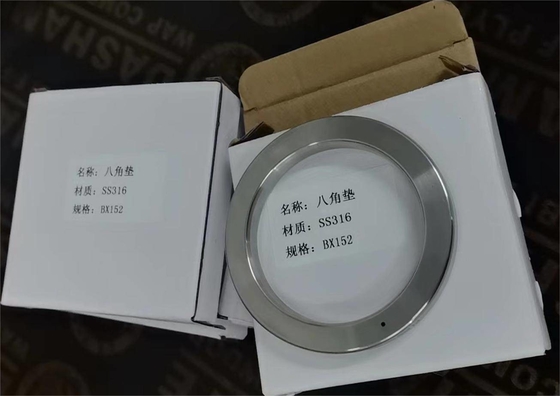

Stainless Steel 316 Octagonal Ring-Joint Gasket BX152 ASME B16.20 For API6A Pipe flange

Stainless Steel 316 Octagonal Ring-Joint Gasket BX152 ASME B16.20 For API6A Pipe flange

Stainless Steel 316 Octagonal Ring-Joint Gasket BX152 ASME B16.20 For API6A Pipe flange
