| Place of Origin: | China |
|---|---|
| Brand Name: | FLRS or OEM |
| Certification: | ISO9001 |
| Model Number: | FRC-002 |
| Minimum Order Quantity: | 1 piece |
| Packaging Details: | carton/ plywood cases/plywood pallets |
| Delivery Time: | 5-20DAYS |
| Payment Terms: | Western Union, T/T, L/C |
| Supply Ability: | 50000sets/month |
| Name: | Repair Clamp | Material: | SS 304 |
|---|---|---|---|
| Pressure: | 3.2 Mpa | Liner: | EPDM /NBR |
| Type: | RCH-L | Size: | DN15-DN500 |
| High Light: | RCH Folding Type Pipe Repair Clamp,SS304 Long Pipe Leak Repair Clamp,EPDM Pipe Repair Clamp |
||

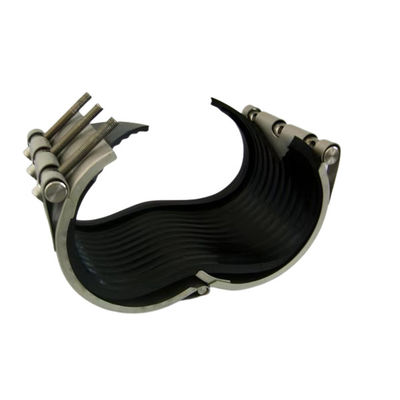

RCH Folding Type Pipe Repair Clamp / SS304+EPDM Long Type Pipe Leak Repair Clamp
The pipeline repair clamp is mainly used for the rapid repair of pipeline leakage. It can quickly repair the aging and corroded pipeline trachoma and fracture without stopping the pressure and replacing the pipeline. It is easy to install and has high construction efficiency.
| Size | OD (mm) |
Pipe OD (mm) |
Length (mm) |
W/Pressure |
| DN25 | 34 | 33-35 | 100 | 3.0Mpa |
| DN32 | 42 | 41-44 | 100 | 3.0Mpa |
| DN40 | 48.6 | 47-49 | 100 | 3.0Mpa |
| DN50 | 60 | 59-62 | 139 | 3.0Mpa |
| DN65 | 76 | 74-79 | 139 | 3.0Mpa |
| DN80 | 89 | 87-92 | 203 | 2.5Mpa |
| DN100 | 114 | 106-110 | 203 | 2.5Mpa |
| DN125 | 140 | 137-143 | 203 | 2.5Mpa |
| DN150 | 168 | 166-170 | 203 | 2.5Mpa |
| DN200 | 219 | 217-221 | 255 | 2.0Mpa |
| DN250 | 273 | 271-275 | 255 | 1.6Mpa |
| DN300 | 325 | 323-327 | 255 | 1.6Mpa |
The multifunctional pipe repairer is mainly used for the rapid repair of pipe leaks. It is easy to install, efficient
and can be operated without special tools.
