Material: | Carbon Steel/stainless Steel/alloy Steel | Standard: | ASME/DIN |
---|---|---|---|
Pressure Rating: | 3000LB/6000LB | Shape: | Round, Hex |
Connection: | Female Thread | ||
High Light: | BSPT Female Threaded Full Coupling,3000LB Female Threaded Full Coupling,ASME B16.11 Threaded Full Coupling |

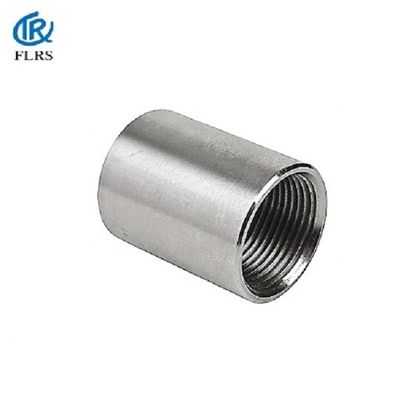

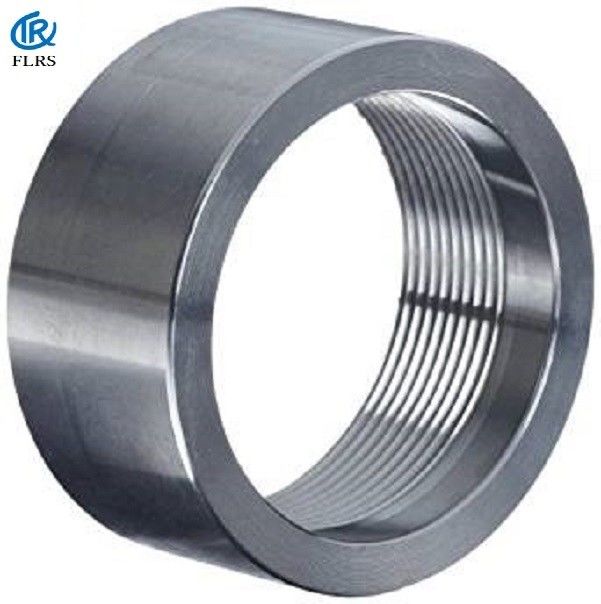

Double Female thread NPT/BSPT full coupling half coupling ASME B16.11 carbon steel/stainless steel/alloy steel
Coulping, straight connector. a short piece of pipe used to connect two pipes. Also called external connector. Because of its convenient use, it is widely used in civil construction, industry, agriculture and other fields.
Nominal Diameter
|
The Length of Coupling and Cap
|
Outside Diameter
|
Length of Thread
|
|||||||||
E
|
F
|
D
|
||||||||||
DN
|
NPS
|
3000LB
|
6000LB
|
3000LB
|
6000LB
|
3000LB
|
6000LB
|
B
|
L2
|
|||
Sch160
|
XXS
|
Sch160
|
XXS
|
Sch160
|
XXS
|
|||||||
6
|
1/8
|
32
|
32
|
19
|
-
|
16
|
22
|
6.5
|
6.5
|
|||
8
|
1/4
|
35
|
35
|
25
|
27
|
19
|
25
|
8
|
10
|
|||
10
|
3/8
|
38
|
38
|
25
|
27
|
22
|
32
|
9
|
10.5
|
|||
15
|
1/2
|
48
|
48
|
32
|
33
|
29
|
38
|
11
|
13.5
|
|||
20
|
3/4
|
51
|
51
|
37
|
38
|
35
|
44
|
12.5
|
14
|
|||
25
|
1
|
60
|
60
|
41
|
43
|
44
|
57
|
14.5
|
17.5
|
|||
32
|
1.1/4
|
67
|
67
|
44
|
46
|
57
|
64
|
17
|
18
|
|||
40
|
1.1/2
|
76
|
76
|
44
|
48
|
64
|
76
|
18
|
18.5
|
|||
50
|
2
|
86
|
86
|
48
|
51
|
76
|
92
|
19
|
19
|
|||
65
|
2.1/2
|
92
|
92
|
60
|
64
|
92
|
108
|
23.5
|
29
|
|||
80
|
3
|
108
|
108
|
65
|
68
|
108
|
127
|
26
|
30.5
|
|||
100
|
4
|
121
|
121
|
68
|
75
|
140
|
159
|
27.5
|
33
|
