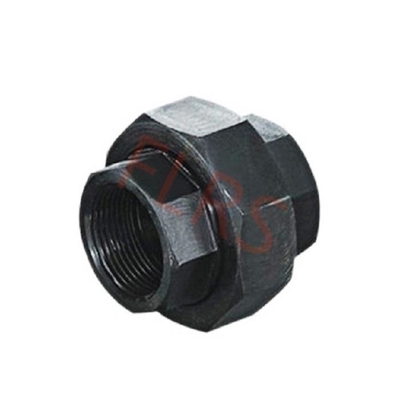

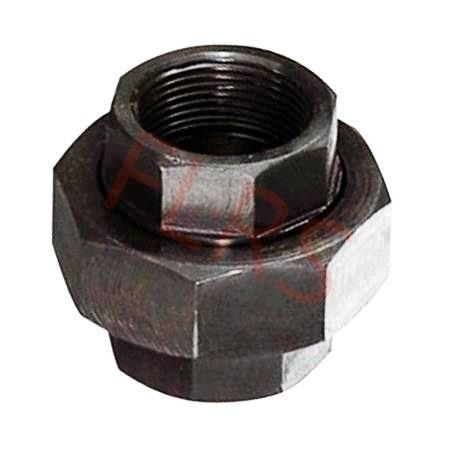

Carbon Steel Pipe Fitting Threaded Union A105 MSS SP83

Carbon Steel Pipe Fitting Threaded Union A105 MSS SP83

  • Carbon Steel Pipe Fitting Threaded Union A105 MSS SP83
  • Carbon Steel Pipe Fitting Threaded Union A105 MSS SP83
Carbon Steel Pipe Fitting Threaded Union A105 MSS SP83
Product Details:
Place of Origin: China
Brand Name: FLRS or OEM
Certification: ISO9001
Model Number: FP-048
Payment & Shipping Terms:
Minimum Order Quantity: 5 piece
Packaging Details: carton/ plywood cases/plywood pallets
Delivery Time: 5-20days
Payment Terms: T/T, L/C, Western union, paypal
Supply Ability: 100tons/month
Contact Now
Detailed Product Description
Product Name: UNION Standard: MSS SP83
Pressure Rating: 3000LB Material: A105
Connection Type: Threaded Size: 1/8"-4"3
Surface Treatment: H.D.G Or Black Package: Carton
High Light:

Carbon Steel Threaded Union

,

Carbon Steel Pipe Union A105

,

Carbon Steel Pipe Fittings Union

Threaded Carbon Steel Pipe Union A105 as Per MSS SP83

PIPE FITTINGS

Product Name

 Union

Size Range 1/8"-3"
Technology Forged, CNC Machined
Connection Type Socket-Weld, Threaded
Standard MSS SP83
Certificate EN10204-3.1
Pressure Range 2000LB-9000LB




A pipe union is a kind of fitting where two pipes are united so that they can be detached. The goal is to not cause deformation in the pipes when connecting or disconnecting. The pipe union causes a positive seal, which keeps the pipes together and prevents leaking. These are commonly used to connect pipes that may have different calibers. Pipe Union is a type of fitting equipment designed in such a way to unite two pipes which can be detached without causing any deformation to the pipes.The pipe unions make the connection of the pipeline simpler and easier to disassemble and replace,which greatly saves the cost of the pipeline connection. MSS SP-83 Threaded Union are common used in small diameter pipes and pressure is tacitly 3000lb for general purpose industry applications. However, Class 6000 Union is common for high pressure applications. It can be provided in all standard metals or combination of metals.


Dimensions ASME 16.11, MSS SP-79, MSS SP-95, 83, 95, 97, BS 3799
Size 1/8″~4″ (DN6~DN100)
Class 2000 LBS, 3000 LBS, 6000 LBS, 9000 LBS
Type Socket Weld (S/W) & SCREWED (SCRD) – NPT, BSP, BSPT
Form 90 Deg Threaded Elbow, Threaded Elbow, Threaded Pipe elbow
Value Added Services: Hot Dipped Galvanizing, Epoxy & FBE Coating, Electro Polish, Sand Blasting, Threading, Soldering
Production Grades: Stainless Steel, Alloy Steel, Duplex, Nickel Alloys, Low temperature Steel, Carbon Steel, Cupro Nickel





Carbon Steel Pipe Fitting Threaded Union A105 MSS SP83 0


Carbon Steel Pipe Fitting Threaded Union A105 MSS SP83 1
Carbon Steel Pipe Fitting Threaded Union A105 MSS SP83 2
Carbon Steel Pipe Fitting Threaded Union A105 MSS SP83 3
Carbon Steel Pipe Fitting Threaded Union A105 MSS SP83 4
