| Brand Name: | FLRS or OEM |
| Model Number: | FLRS-S010 |
| MOQ: | 5 pieces |
| Price: | usd0.1-4 per pc |
| Packaging Details: | carton/ plywood cases/plywood pallets |
| Payment Terms: | T/T， L/C， Western union |

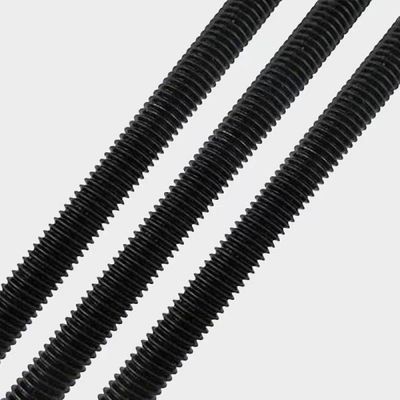

Black Oxide Full Thread Rod / DIN975 Carbon Steel Gr8.8 10.9 12.9 Stud Bolt
Product Description:
Stud bolt, also known as double-ended screw or double-ended stud. It is used to connect the fixed link function of the machine. The stud bolt has threads at both ends, and the screw in the middle is thick or thin. Generally used in mining machinery, bridges, automobiles, motorcycles, boiler steel structures, pendant towers, long-span steel structures and large buildings.
| Standard | DIN975 |
| Size | Standard & non-standard, customized |
| Material | ASME A193 B7 or 42CrMoA |
| Grade | 8.8, 10.9,12.9 |
| Thread | UNC,UNF,BSW |
| Finish | Black oxide |
| Packing | cartons on pallet or wooden case |
| Test Equipments | Desktop direct- reading spectrometer, cutting machine, automatic pre- milling machine, polishing machin, |
| hard-testing gauge(Vickers), metallography microscope, electrolytic thickness gauge, tensile testing machine, | |
| salt spray device, magnetic detection machine(magnetic particle flaw detector), Caliper, Go&No-go gauge and etc. | |
| Supply Ability | About 80 tons per month |
| MOQ | 5pcs |
| Trade Term | FOB/CIF/CFR/CNF/EXW/DDU |
| Payment | T/T, L/C ,D/P , Western Union |
Coating:
Stud bolts generally need to undergo surface treatment. There are many types of bolt surface treatments. Commonly used are electroplating, blackening, oxidation, phosphating, electroless zinc flake coating, etc.
Drawing:
Weight:
| d | P | Weight per kpcs (Kg) |
d | P | Weight per kpcs (Kg) |
| M2 | 0.4 | 18.7 | M20 | 1.5/2.5 | 2080 |
| 2.5 | 0.45 | 30 | M22 | 1.5/2.5 | 2540 |
| M3 | 0.5 | 44 | M24 | 2/3 | 3000 |
| M3.5 | 0.6 | 60 | M27 | 2/3 | 3850 |
| M4 | 0.7 | 78 | M30 | 2/3.5 | 4750 |
| M5 | 0.8 | 124 | M33 | 2/3.5 | 5900 |
| M6 | 1 | 177 | M36 | 3/4 | 6900 |
| M8 | 1/1.25 | 319 | M39 | 3/4 | 8200 |
| M10 | 1/1.25/1.5 | 500 | M42 | 3/4.5 | 9400 |
| M12 | 1.25/1.5/1.75 | 725 | M45 | 3/4.5 | 11000 |
| M14 | 1.5/2 | 970 | M48 | 3/5 | 12400 |
| M16 | 1.5/2 | 1330 | M52 | 3/5 | 14700 |
| M18 | 1.5/2.5 | 1650 | |||
Advantages:
We will give you a quick and reliable quote. And we have our own factory, in a short period of time the production is manageable. Our products are subject to strict quality inspection, customers can use any standard testing equipment testing. Inspector test each process according to the order and the corresponding product standard, each process has corresponding operation instruction. All the test result is filed in the corresponding computer daily. Mechanical properties are filed in paper documents.
Our factory has an experienced new product design and development team. Small orders are acceptable. For your convenience. Around you to provide after-sales service.
|
|
