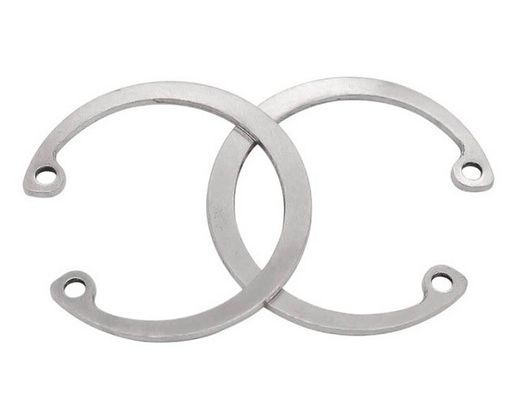

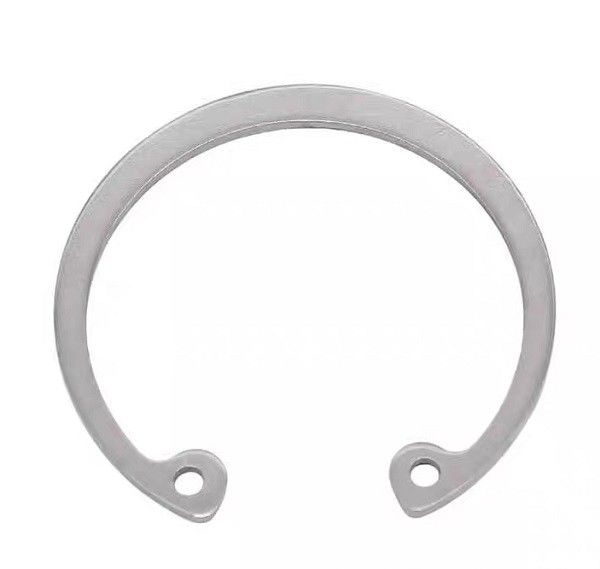

Stainless steel Internal Circlips Washer / DIN472 Retaining Rings For Bores (d≤300mm)
The retaining ring for bore is installed in the circular hole to fix the axial movement of the parts. The outer diameter of this kind of retaining ring is slightly larger than the diameter of the assembly circular hole. When installing, use circlip pliers to insert the pliers mouth into the pliers hole of the retaining ring and clamp the retaining ring before it can be put into the pre-processed circular hole inner groove.
| Norm size |
h | D | d1 min |
kg/1kpcs |
Norm size |
h | D | di min |
kg/1kpcs |
||||
| max | min | max | min | max | miin | max | min | ||||||
| 8 | 0.8 | 0.75 | 9.06 | 8.6 | 1 | 0.14 | 75 | 2.5 | 2.43 | 80.3 | 79.04 | 3 | 18.8 |
| 9 | 0.8 | 0.75 | 10.16 | 9.7 | 1 | 0.15 | 78 | 2.5 | 2.43 | 83.8 | 81.96 | 3 | 20.4 |
| 10 | 1 | 0.94 | 11.16 | 10.7 | 1.2 | 0.18 | 80 | 2.5 | 2.43 | 86.8 | 84. 96 | 3 | 22 |
| 11 | 1 | 0.94 | 12.16 | 11.7 | 1.2 | 0.31 | 82 | 2.5 | 2.43 | 88.8 | 86.96 | 3 | 24 |
| 12 | 1 | 0.94 | 13.36 | 12.9 | 1.5 | 0.37 | 85 | 3 | 2.92 | 91.8 | 89. 96 | 3.5 | 25.3 |
| 13 | 1 | 0.94 | 14.46 | 14 | 1.5 | 0.42 | 88 | 3 | 2.92 | 94.8 | 92.96 | 3.5 | 28 |
| 14 | 1 | 0.94 | 15.46 | 15 | 1.7 | 0.52 | 90 | 3 | 2.92 | 96.8 | 94.96 | 3.5 | 31 |
| 15 | 1 | 0.94 | 16.56 | 16.1 | 1.7 | 0.56 | 92 | 3 | 2.92 | 98.8 | 96.96 | 3.5 | 32 |
| 16 | 1 | 0.94 | 17.66 | 17.2 | 1.7 | 0.6 | 95 | 3 | 2.92 | 111.8 | 99.96 | 3.5 | 35 |
| 17 | 1 | 0.94 | 18.72 | 18.17 | 1.7 | 0.65 | 98 | 3 | 2.92 | 114.8 | 112.96 | 3.5 | 37 |
| 18 | 1 | 0. 94 | 19.92 | 19.37 | 2 | 0.T4 | 100 | 3 | 2.92 | 116.8 | 114.96 | 3.5 | 38 |
| 19 | 1 | 0.94 | 20.921 | 20.37 | 2 | 0.83 | 102 | 4 | 3.9 | .109.3 | 107.46 | 3.5 | 55 |
| 20 | 1 | 0.94 | 21.921 | 21.37 | 2 | 0.9 | 105. | 4 | 3.9 | l113.3 | 111.46 | 3.5 | 56 |
| 21 | 1 | 0.94 | 22.921 | 22.37 | 2 | 1 | 108 | 4 | 3.9 | 116.3 | 114.46 | 3.5 | 60 |
| 22 | 1 | 0.94 | 23.92l | 23.37 | 2 | 1.1 | 110 | 4 | 3.9 | |118.3 | 116.46 | 3.5 | 64.5 |
| 24 | 1.2 | 1.14 | 26.321 | 25.69 | 2 | 1.42 | 112 | 4 | 3.9 | 120.3 | 118.46 | 3.5 | 72 |
| 25 | 1.2 | 1.14 | 27.32 | 26.69 | 2 | 1.5 | 115 | 4 | 3.9 | 123.5 | 121 | 3.5 | 74.5 |
| 26 | 1.2 | 1.14 | 28.32 | 27.69 | 2 | 1.6 | 120 | 4 | 3.9 | 128.5 | 126.37 | 3.5 | 77 |
| 28 | 1.2 | 1.14 | 30.6 | 29.85 | 2 | 1.8 | 125 | 4 | 3.9 | 133.5 | 131.37. | 4 | 79 |
| 30 | 1.2 | 1.14 | 32.6 | 31.85 | 2 | 2.06 | 130 | 4 | 3.9 | 138.5 | 136.37 | 4 | 82 |
| 31 | 1.2 | 1.14 | 33.9 | 33.15 | 2.5 | 2.1 | 135 | 4 | 3.9 | 143.5 | 141.37 | 4 | 84 |
| 32 | 1.2 | 1.14 | 34.9 | 34.15 | 2.5 | 2.21 | 140 | 4 | 3.9 | 148.5 | 146.37 | 4 | 87.5 |
| 34 | 1.5 | 1.44 | 37 | 35.25 | 2.5 | 3.2 | 145 | 4 | 3.9 | 153.5 | 151.37 | 4 | 93 |
| 35 | 1.5 | 1.44 | 38.3 | 37.55 | 2.5 | 3.54 | 150 | 4 | 3.9 | 159.5 | 157.37 | 4 | 105 |
| 36 | 1.5 | 1.44 | 39.3 | 38.55 | 2.5 | 3.7 | 155 | 4 | 3.9 | 165.5 | 163.37 | 4 | 107 |
| 37 | 1.5 | 1.44 | 40.3 | 39.55 | 2.5 | 3.74 | 160 | 4 | 3.9 | 170.5 | 168.37 | 4 | 110 |
| 38 | 1.5 | 1.44 | 41.3 | 40.55 | 2.5 | 3.9 | 165 | 4 | 3.9 | 176 | 173.9 | 4 | 125 |
| 40 | 1.75 | 1.69 | 44.4 | 43.11 | 2.5 | 4.7 | 170 | 4 | 3.9 | 181 | 178.9 | 4 | 140 |
| 42 | 1.75 | 1.69 | 46.4 | 45.11 | 2.5 | 5.4 | 175 | 4 | 3.9 | 186.2 | 183.78 | 4 | 150 |
| 45 | 1.75 | 1.69 | 49.4 | 48.11 | 2.5 | 6 | 180 | 4 | 3.9 | 191.2 | 188.78 | 4 | 165 |
| 47 | 1.75 | 1.69 | 51.6 | 50.04 | 2.5 | 6.1 | 185 | 4 | 3.9 | 186.2 | 193.78 | 4 | 170 |
| 48 | 1.75 | 1.69 | 52.6 | 51.04 | 2.5 | 6.7 | 190 | 4 | 3.9 | 191.2 | 198.78 | 4 | 175 |
| 50 | 2 | 1.93 | 55.3 | 53.74 | 2.5 | 7.3 | 195 | 4 | 3.9 | 196.2 | 203.78 | 4 | 183 |
| 52 | 2 | 1.93 | 57.3 | 55.74 | 2.5 | 8.2 | 200 | 4 | 3.9 | 201 | 208.78 | 4 | 195 |
| 55 | 2 | 1.93 | 60.3 | 58.74 | 2.5 | 8.3 | 210 | 5 | 4.88 | 223.7 | 221.28 | 4 | 270 |
| 56 | 2 | 1.93 | 61.3 | 59.74 | 2.5 | 8.7 | 220 | 5 | 4.88 | 233.7 | 231.28 | 4 | 315 |
| 58 | 2 | 1.93 | 63.3 | 61.74 | 2.5 | 10.5 | 230 | 5 | 4.88 | 243.7 | 241.28 | 4 | 330 |
| 60 | 2 | 1.93 | 65.3 | 63.74 | 2.5 | 11.1 | 240 | 5 | 4.88 | 254 | 251.99 | 4 | 345 |
| 62 | 2 | 1.93 | 67.3 | 65.74 | 2.5 | 11.2 | 250 | 5 | 4.88 | 264 | 261.99 | 4 | 360 |
| 63 | 2 | 1.93 | 68.3 | 66.74. | 2.5 | 12.4 | 260 | 5 | 4.88 | 277 | 274.99 | 5 | 375 |
| 65 | 2..5 | 2.43 | 70.3 | 68.74 | 3 | 14.3 | 270 | 5 | 4.88 | 287 | 269.99 | 5 | 388 |
| 68 | 2.5 | 2.43 | 73.6 | 72.04 | 3 | 16 | 280 | 5 | 4.88 | 297 | 294.99 | 5 | 400 |
| 70 | 2.5 | 2.43 | 75.6 | 74.04 | 3 | 16.5 | 290 | 5 | 4.88 | 307 | 304. 99 | 5 | 415 |
| 72 | 2.5 | 2.43 | 77.6 | 76.04 | 3 | 18.1 | 300 | 5 | 4.88 | 317 | 314.99 | 5 | 435 |
|
|
