Product Description

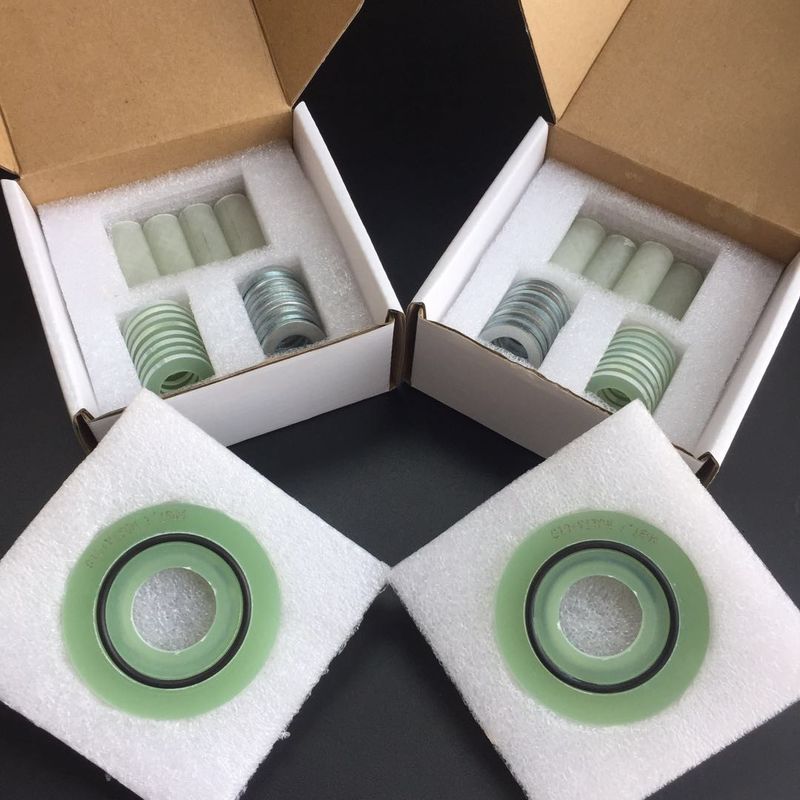

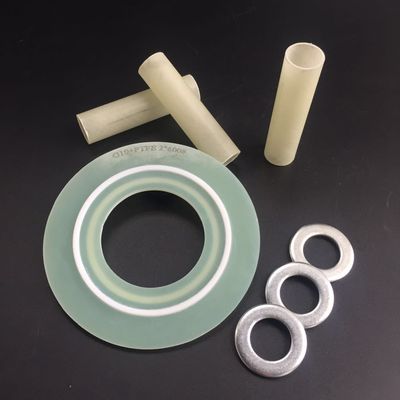

G10 TYPE E TYPE F Flange Insulation Kit Gasket for different Flange



A flange isolation kit protects a flanged joint from the corrosion from static currents (by preventing a metal-to-metal contact among flanges, stud bolts, and gaskets). A flange insulation kit consists of one washer for each nut, one full-length insulating sleeve for each bolt, a gasket (type F, E, D, O), and thick plated steel washers for each nut



Item Insulation Material Material of Insulation Gasket Max. Temp.(℃) Insulation Resistance(Ω)
Sleeve Washer Pressure Class (lb)
General     PTFE Solid Gasket -100~100 Over 2.0 x 1013
    150
    Reinforced PTFE Gasket -200~200 1.3 x 1011
    300
    Neoprene Faced Phenolic Gasket -30~120 RUBBER CR 1.6 x 107
PTFE   150
Epoxy Epoxy Glass Reinforced Epoxy Plate Gasket with Rubber O-Ring -40~150 EPDM 2.0 x 1013
Phenolic Phenolic 600
    Reinforced Phenolic Plate Gasket with Rubber O-ring -40~150 VITON 9.7 x 109
    600
    Reinforced Phenolic Plate Gasket with Rubber O-ring -60~150 NBR 1.3 x 1011
    600
High Pressure Mica Mica Epoxy Faced Metal Plate with Rubber O-ring 150 -
PTFE Epoxy 1500
Epoxy Phenolic Epoxy faced Metal Plate with PTFE Seal 150 Over 2.0 x 1013
Phenolic   2500
High Temp & Pressure Mica Mica KAMMPROFILE Gasket with STARPITE 1000 9.9 x 1010







Details:

The purpose of flange isolation kits is to prevent the (electrolytic) corrosion of flanges and flanged joints that static currents present on a piping system may induce.

The gasket isolation kit consists of a special gasket, isolation sleeves for all the stud bolts and nuts, and special washers. These components are manufactured in special materials with proper chemical stability, low water absorption, and dielectric properties.



Gasket Type:

Type E (Full Face Gasket)This gasket kit provides complete protection of both flange faces. The gasket has same outside diameter of

flanges. This feature will prevent collection of foreign matter between the flange faces to ensure complete cathodic isolation.



Type F (Rased Face Gasket)

This gasket is manufactured to fit only the raised face surface of the flanges. Outside diameter of the gasket is designed to be slightly less

than the inside diameter of the bolt circle. It is recommended that the flanges be wrapped to prevent foreign material from "shorting out"

the flanges.

Type RJ (Ring Type Joint Gasket)
