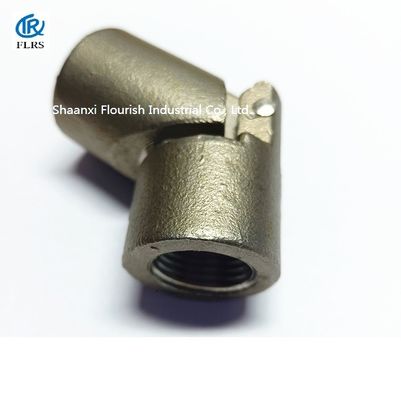

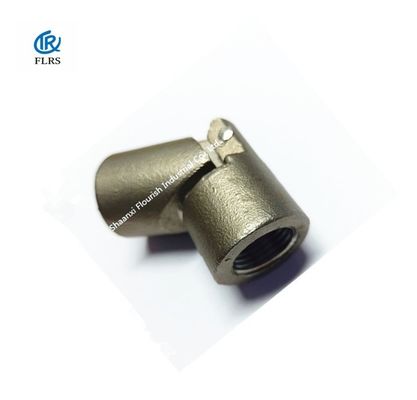

1/2 Inch Stainless Steel Rotary Joint Siphon Elbow For Paper Mill Dryer

Product Details:

Place of Origin:	China
Brand Name:	FLRS or OEM
Certification:	ISO9001
Model Number:	FP-028

Payment & Shipping Terms:

Minimum Order Quantity:	1 piece
Packaging Details:	carton/ plywood cases/plywood pallets
Delivery Time:	8-20days
Payment Terms:	T/T， L/C， Western union， paypal
Supply Ability:	100tons/month

Contact Now

Detailed Product Description

Material:

Stainless Steel

Standard:

Standard

Connection Type:

THREADED

Application:

Drying Cylinders

High Light:

Rotary Joint Siphon Elbow

1/2 Inch Stainless Steel Siphon Elbow

Paper Mill Dryer Siphon Elbow

1/2 inch stainless steel Rotary joint Siphon Elbow for paper mill dryer

The siphon elbow is specially designed for low-speed (≤80rpm) drying cylinders. It is used as a siphon device to discharge condensate after the steam is heated to release heat. This structure adopts hinge connection, which is convenient to install and easy to maintain. The two elbow joints are sealed with a refined ball head and the inner hole line connected to it. Relying on the weight of the siphon tube, it is easy to form a good static seal and sealing effect. Well, relying on the pressure difference between the siphon pipe and the steam inlet of the rotary joint, it is easy to realize the siphon and achieve a good drainage purpose.

PIPE FITTINGS
Product Name	Siphon Elbow
Packaging:	Plywood Cases or per customer’ s requirement
Quality	High Level
Advantage	Easily installed Leak tight sealing
Painting	Anti-rust painting/ Zinc coated/ Upon requirement

1/2 Inch Stainless Steel Rotary Joint Siphon Elbow For Paper Mill Dryer 0

Special siphon for high-speed dryer

Such a siphon is designed for high-speed, large-diameter cylinders designed, it has a superior siphon effect and operation of high intensity support.
