Color: | Yellow | Head: | Hex. Head |
---|---|---|---|
Thread: | NPT | Specification: | B16.11 |
Material: | Brass | Keyword: | Hex. Bushing, Hydraulic Bushing |
High Light: | Brass Thread Npt Hex Head Bushing,B16.11 Hex Head Bushing,Reducing Joint Hex Head Bushing |

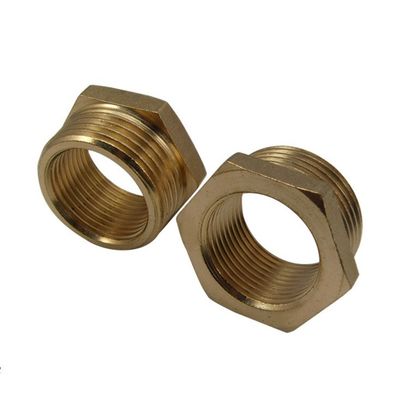

Brass Thread Npt Hex. Bushing / Male X Female Hydraulic Bushing / Hardware
Bushing, it is called a reducing joint, which is generally processed by cutting and forging a hexagonal rod. There are many types of threads used. It is used to connect two pipes with different diameters of internal and external threaded pipe fittings. It is irreplaceable in pipe connections. effect.
size: TXT1 | H | L | L1 |
3/8”X 1/4" | 0.75 | 0.55 | 0.31 |
1/2" X 3/8" | 0.87 | 0.75 | 0.31 |
3/4" X1/2" | 1.06 | 0.75 | 0.35 |
1" X 3/4" | 1.38 | 0.94 | 0.35 |
1 1/4" X 1" |
1.81 |
0.94 | 0.43 |
1 1/2" X 1 1/4" | 1.97 | 0.98 | 0.47 |
