Soft Iron R105 Octagonal Ring Spiral Wound Gasket

Brand Name:	FLRS or OEM
Model Number:	FLRS-RTJ01
MOQ:	5 piece
Packaging Details:	carton/ plywood cases/plywood pallets
Payment Terms:	L/C, T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO9001

Standard:

ASME B16.20

Material:

Soft Iron

Size:

From R11-R105

Hardness:

Less Than 90BHN

Shape:

Octogonal Ring

Pressure:

CLASS150-CLASS2500

Supply Ability:

100tons/month

Highlight:

Octagonal Spiral Wound Gasket

R105 Spiral Wound Gasket

Soft Iron Spiral Wound Gasket

Product Description

Ring Joint Gasket

Metal ring gasket is used in pipe flanges, valves, pressure vessels, submarine, high-speed joint surface, high temperature and high pressure valve cover and other pressure joint.

Material of Ring Joint Gasket ,Designation,Temperature

Material of Ring Joint Gasket		Max Hardness		Designation	Max Temperature
Name	Standard	HBS	HRB	Designation	Max Temperature
Iron ª	GB/T 9971	90	56	D	540
10	GB/T 699	120	68	S	540
1Cr5Mo	JB 4726	130	72	F5	650
0Cr13	JB 4728 GB/T 1220	170	86	410S	650
0Cr18Ni9		160	83	304	700ь
00Cr19Ni10		150	80	304L	450
0CR17Ni12Mo2		160	83	316	700ь
00Cr17Ni14Mo2		150	80	316L	450
0Cr18Ni10Ti		160	83	321	700ь
0Cr18Ni11Nb		160	83	347	700ь
When working temperature above 540℃, Please contact with manufacturer

Main Features

1)There are a variety of materials and patterns to suit different design and operation requirements,
2)The new flat bottomed grooved flanges are interchangeable and can be supplied within the shortest possible time.
3)Note: the quality of the metal rings should be lower than the flange 15~20 HB, and the old products are not recommended to be reused.

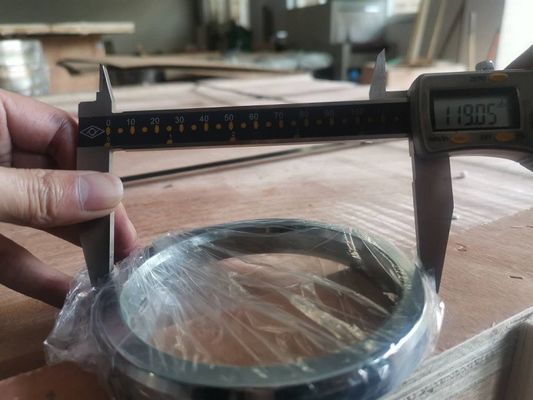

Soft Iron R105 Octagonal Ring Spiral Wound Gasket 0

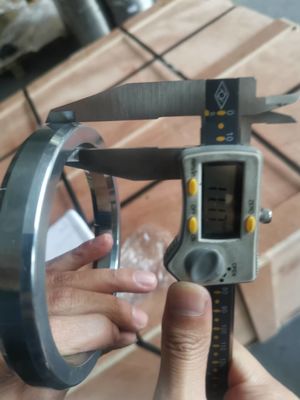

Soft Iron R105 Octagonal Ring Spiral Wound Gasket 1
