| Brand Name: | FLRS or OEM |
| Model Number: | FP-011 |
| MOQ: | 1 piece |
| Packaging Details: | carton/ plywood cases/plywood pallets |
| Payment Terms: | T/T， L/C， Western union， paypal |

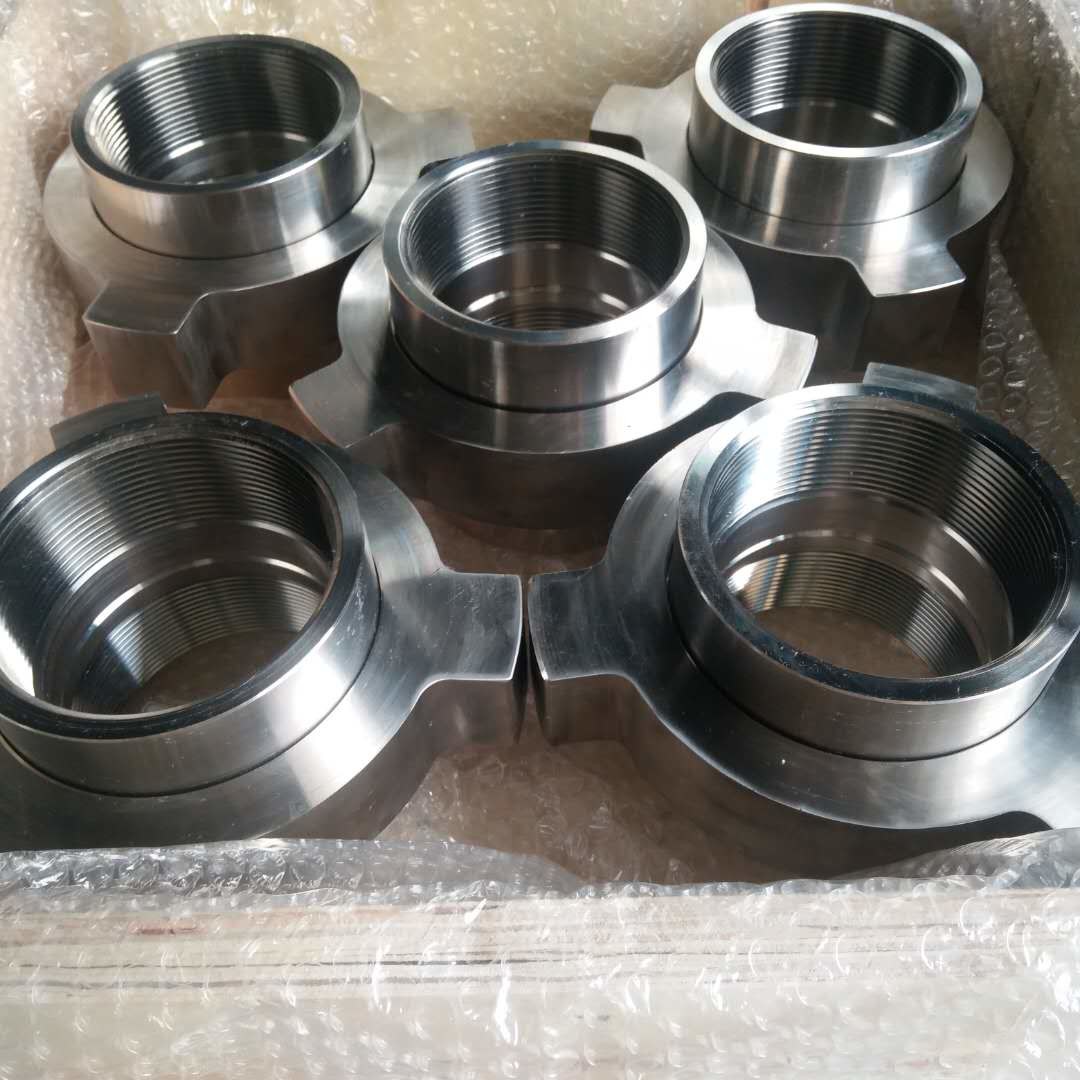

API Forged carbon steel/stainless steel Threaded/Butt-welded Hammer union
| High-pressure pipe connection (union) for the cement truck, fracturing trucks, all kinds of manifolds, pipelines and other high voltage equipment, accessories, transport is an important oil, water, fracturing fluid and mixed fluid. This product is made of high quality forged steel and finished steel with good mechanical properties, sealing performance and different pressure levels, it is the ideal accessory oil drilling operations. Pressure levels have 7MPa ~ 105MPa series, specification models FIG100, FIG200, FIG206, FIG400, FIG602, FIG1002, , FIG1502,series, in the form of a threaded connection, welded, three types of anti-hydrogen sulfide4gas. For easier identification, different pressure levels of union has a different color, and a clear specification of connection and pressure rating marked on the wing nut. | |
| FIG NO. | SIZE |
| 100 | 2", 3", 4", 6", 8" |
| 200, 206 | 1", 1-1/2", 2", 2-1/2", 3", 4", 5", 6", 8" |
| 207 | 2", 3", 4", 5", 6", 8", 10" |
| 400 | 2", 3", 4" |
| 602 | 1", 2", 3", 4" |
| 1002 | 1", 1-1/2", 2", 2-1/2", 3", 4", 5" |
| 1003 | 2", 3", 4", 5", 6" |
| 1004 | 5", 6" |
| 1502 | 2", 3" |
| Fig100: 1.Union compact structure, widely used in low-voltage kill line, can also be used to require a medium pressure range of air, water, oil or gasoline applications. Available pipeline thread and butt (SCH) connection. 2.FIG100 1000PSI NSCWP, test pressure 1500PSI black nut, yellow parts |
|
| Fig200, 206: 1.Union compact structure, widely used in low-voltage kill line, can also be used to require a medium pressure range of air, water, oil or gasoline applications. Available pipeline thread and butt (SCH) connection. 2.200 206PSI NSCWP, test pressure 3000PSI blue nut, gray parts |
|
| Fig207: 1.Union compact structure, widely used in low-voltage kill line, can also be used to require a medium pressure range of air, water, oil or gasoline applications. Available pipeline thread and butt (SCH) connection. 2.207 type 2000PSI NSCWP, test pressure 3000PSI blue cap, gray parts. |
|
| Fig400: 1.Union compact structure, widely used in low-voltage kill line, can also be used to require a medium pressure range of air, water, oil or gasoline applications. Available pipeline thread and butt (SCH) connection. 2.400 4000PSI NSCWP, test pressure 6000PSI black nut, red parts,With sealing ring 3.Can also be customized according to customer needs |
|
| Fig602: 1.Union compact structure, widely used in low-voltage kill line, can also be used to require a medium pressure range of air, water, oil or gasoline applications. Available pipeline thread and butt (SCH) connection. 2.602 6000PSI NSCWP, test pressure 9000PSI black nut, red parts,With sealing ring. 3.Can also be customized according to customer needs |
|
| Fig607: 1.Union compact structure, widely used in low-voltage kill line, can also be used to require a medium pressure range of air, water, oil or gasoline applications. Available pipeline thread and butt (SCH) connection. 2.607 6000PSI NSCWP, test pressure 9000PSI sky-blue nut, black parts,Equipped with resilient nitrile rubber sealing ring 3.Can also be customized according to customer needs |
|
| Fig1002: 1.Union compact structure, widely used in low-voltage kill line, can also be used to require a medium pressure range of air, water, oil or gasoline applications. Available pipeline thread and butt (SCH) connection. 2.1002 10000PSI NSCWP, test pressure 15000PSI red nut, blue parts,Equipped with nitrile rubber sealing ring 3.Can also be customized according to customer needs. |
|
| Fig1502: 1.Union compact structure, widely used in low-voltage kill line, can also be used to require a medium pressure range of air, water, oil or gasoline applications. Available pipeline thread and butt (SCH) connection. 2.1502 10000PSI NSCWP, test pressure 15000PSI red nut, blue parts,Equipped with nitrile rubber sealing ring 3.Can also be customized according to customer needs. |
|
|
|
