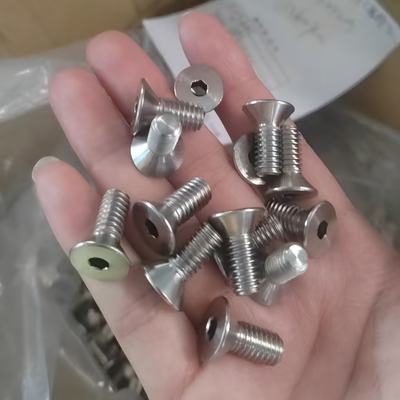

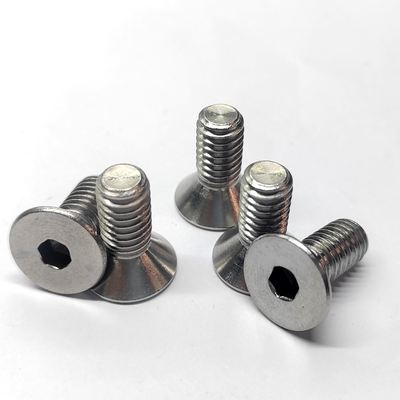

Monel 400 Flat Head Socket Cap Screw ASME B18.3 Countersunk 82 Degree Marine Grade Nickel Copper Alloy

Product Summary

Monel 400 Flat Head Socket Cap Screw manufactured strictly as per standard ASME B18.3, featuring a countersunk 82 degree flat head and hexagon socket drive. The fastener is made of Monel 400 (UNS N04400) nickel-copper alloy, delivering outstanding corrosion resistance in seawater, acidic and ...

Quality Monel 400 Flat Head Socket Cap Screw ASME B18.3 Countersunk 82 Degree Marine Grade Nickel Copper Alloy factory
Quality Monel 400 Flat Head Socket Cap Screw ASME B18.3 Countersunk 82 Degree Marine Grade Nickel Copper Alloy factory
Quality Monel 400 Flat Head Socket Cap Screw ASME B18.3 Countersunk 82 Degree Marine Grade Nickel Copper Alloy factory
Quality Monel 400 Flat Head Socket Cap Screw ASME B18.3 Countersunk 82 Degree Marine Grade Nickel Copper Alloy factory
Basic Properties
country of origin
China
Brand Name
FLRS or OEM
certificate
ISO9001
PRODUCT MODEL
FLRS-B0183
Trading Properties
MOQ
100 Pieces
unit price
USD 0.5-5 / Piece
payment method
T/T,L/C,Western Union,PayPal
Supply Capacity
50 Tons per Month
Product Custom Attributes
Highlight

Monel 400 Flat Head Socket Cap Screw

,

Monel 400 Countersunk Screw

,

Marine Grade Countersunk Head Bolt

Material:
Monel 400 (UNS N04400)
Standard:
ASME B18.3
Head Type:
Flat Countersunk Head (82 Degree)
Drive Type:
Hexagon Socket
Size Range:
M3-M24, 1/8 Inch - 1 Inch
Thread:
Metric Coarse/Fine, UNC/UNF
Corrosion Resistance:
Excellent In Seawater, Acidic And Alkaline Media
Application:
Marine, Chemical, Offshore, Oil And Gas
Temperature Range:
Up To 538 Degree C
Tags:
countersunk socket head csk head bolt countersunk hex bolt
Product Description
Detailed Specifications & Features

Monel 400 Flat Head Socket Cap Screw manufactured strictly as per standard ASME B18.3, featuring a countersunk 82 degree flat head and hexagon socket drive. The fastener is made of Monel 400 (UNS N04400) nickel-copper alloy, delivering outstanding corrosion resistance in seawater, acidic and alkaline environments - the ideal choice for marine, chemical processing, offshore and oil and gas applications.

ItemMonel 400 Flat Head Socket Cap Screw
StandardASME B18.3
MaterialMonel 400 (UNS N04400), Nickel 63% Min, Copper 28-34%, Iron 2.5% Max, Manganese 2% Max
Head TypeFlat Countersunk Head, 82 Degree
Drive TypeHexagon Socket
Size RangeM3-M24, 1/8 inch - 1 inch, customized available
ThreadMetric Coarse/Fine, UNC/UNF, full or half thread
SurfacePlain, as per customer requirement
Corrosion ResistanceExcellent resistance to seawater, hydrofluoric acid, sulfuric acid and alkaline media
Temperature RangeUp to 538 Degree C
ApplicationMarine equipment, chemical plants, offshore platforms, oil and gas, pump and valve industries

Key Advantages:

  • Full compliance with ASME B18.3 dimensional and mechanical requirements
  • Monel 400 alloy offers superior pitting and stress corrosion cracking resistance
  • Smooth countersunk head allows flush installation for streamlined assemblies
  • Standard and non-standard sizes supported, OEM service available

Contact us for detailed specifications, testing certificates and a competitive quotation.
