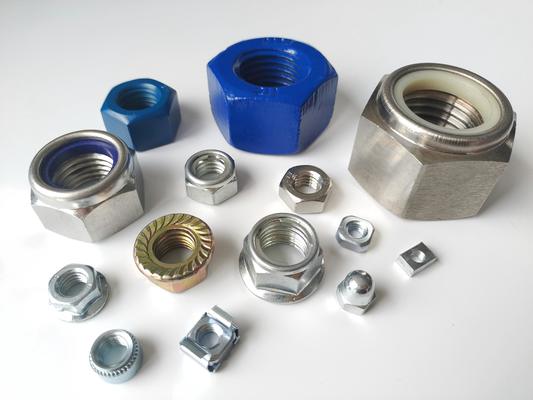

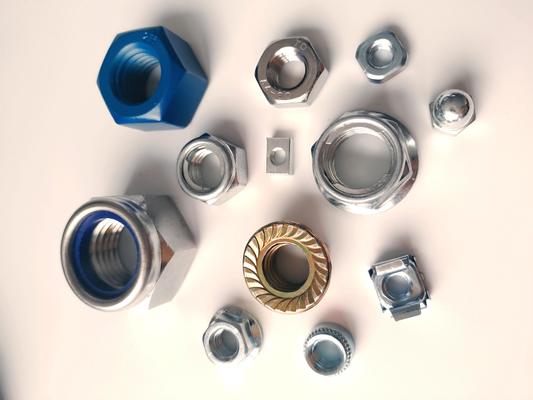

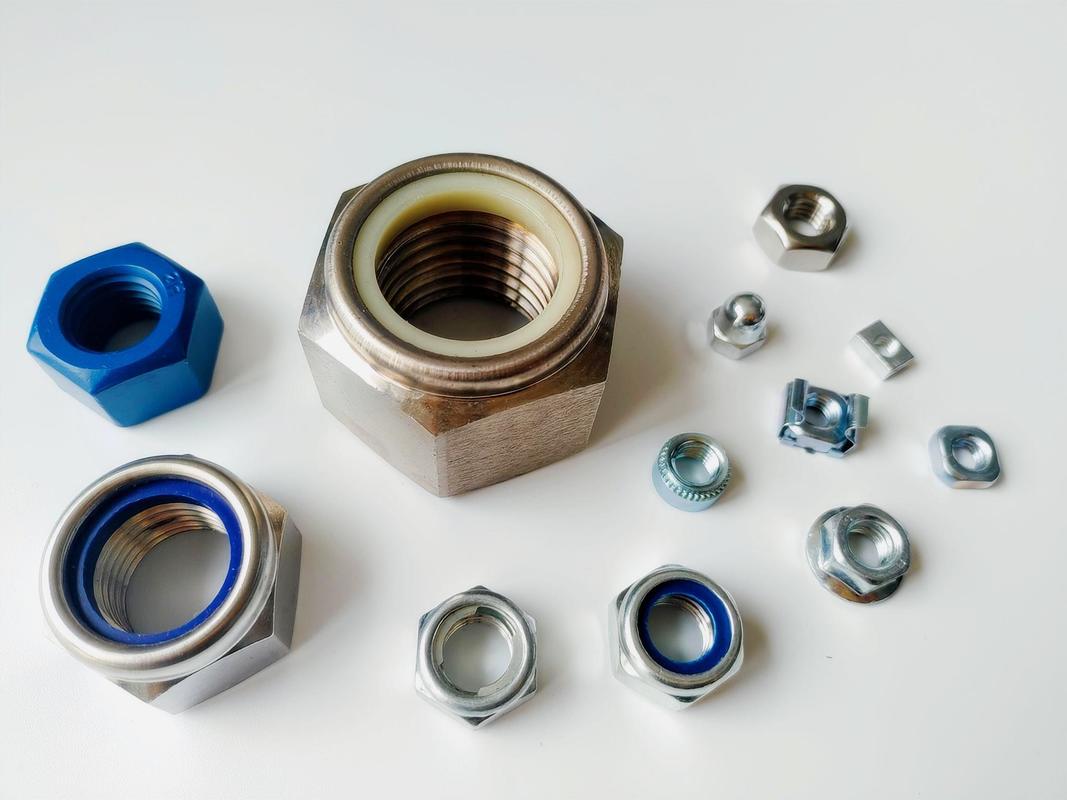

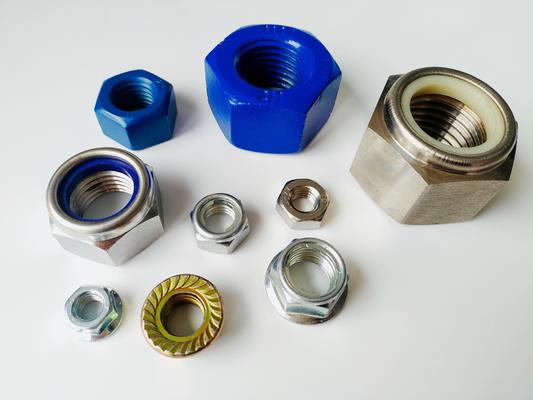

Custom-made standard and non-standard nuts of various materials and specifications
Product Summary
Custom-made Standard and Non-standard Nuts We specialize in providing custom-made nut solutions covering both standard and non-standard categories, tailored to meet diverse industrial application needs. Our services support material customization, specification adjustment, and structural optimizatio...
Basic Properties
country of origin
China
Brand Name
FLRS or OEM
certificate
ISO9001
PRODUCT MODEL
FLRS-N000
Trading Properties
MOQ
200pieces
unit price
USD0.01-10/ PC
payment method
L/C,T/T,Western Union
Supply Capacity
10 tons/month
Product Custom Attributes
Highlight
custom-made standard nuts
,non-standard nuts specifications
,mechanical fasteners various materials
Name:
Nut
Material:
Carbon Steel, Stainless Steel, Alloy Steel
Grade:
5, 8, 10
Standard:
DIN, ISO, ASME
Size:
M2~M100
Thread:
UNC, UN, UNF, BSW
Finish:
Galvanized, Nickle Plated, Black Oxide, Dacromet, PTFE
Color:
Blue-white, White, Yellow, Black, Silver, Grey, Blue,Red
OEM:
Available
How To Use:
Matched With Bolts Or Screws
Product Description
Detailed Specifications & Features
Custom-made Standard and Non-standard Nuts
We specialize in providing custom-made nut solutions covering both standard and non-standard categories, tailored to meet diverse industrial application needs. Our services support material customization, specification adjustment, and structural optimization to ensure optimal performance, compatibility, and environmental adaptability.
Standard Nuts (Customizable per International Standards)
We produce standard nuts strictly adhering to global industrial standards, with customizable parameters including material, surface treatment, and precision grade.
- Metric System: Compliant with ISO (ISO 8673, ISO 4032), DIN (DIN 934, DIN 935), GB (GB/T 6170, GB/T 6172) standards
- Imperial System: Conforming to ASME (ASME B18.2.2), ANSI (ANSI B18.2.2) standards
- Typical Standard Types: Hexagonal nuts, slotted nuts, castellated nuts, flange nuts, lock nuts, and thin nuts
Non-Standard Nuts (Tailored to Special Requirements)
For scenarios where standard nuts fail to meet specific assembly, load, or space needs, we offer full-process non-standard customization.
- Special Structures: Custom-shaped nuts, nuts with integrated washers/flanges, blind-hole nuts
- Non-Standard Threads: Custom pitch, left-hand threads, trapezoidal threads, and buttress threads
- Size Optimization: Ultra-small nuts, large-diameter nuts, and thin-walled nuts
Material Customization Options
| Material Category | Typical Grades | Key Properties | Suitable Applications |
|---|---|---|---|
| Carbon Steel | 1018, 1045, S45C | High tensile strength, good machinability, cost-effective | General industrial machinery, construction, automotive |
| Stainless Steel | 304, 316, 316L | Excellent corrosion resistance, high temperature resistance | Marine equipment, food processing, medical devices |
| Alloy Steel | 40Cr, 35CrMo, 42CrMo | High hardness, fatigue resistance, suitable for heavy loads | Automotive engines, wind turbines |
| Copper Alloy | Brass, Bronze | Good electrical conductivity, corrosion resistance | Electronic equipment, electrical connectors |
| Special Materials | Titanium Alloy, Inconel 625 | Extreme high temperature resistance, corrosion resistance | Aerospace, high-end petrochemical equipment |
Core Specification Ranges
- Size Range: Inner diameter M1-M120 (metric), #0-80 to 4" (imperial)
- Thread Precision: Class 4H-6H (metric), Class 2B-3B (imperial)
- Mechanical Performance: Tensile strength 400 MPa-1200 MPa
Key Customization Dimensions
- Surface Treatment: Zinc plating, galvanizing, Dacromet, electrophoretic coating
- Structural Details: Customizable chamfer size, fillet radius, weight reduction grooves
- Performance Requirements: High-temperature resistance, low-temperature resistance, anti-loosening performance
Core Customization Advantages
- Full-demand coverage from standard size adjustments to unique non-standard designs
- Strict quality control with material inspection, thread inspection, and performance testing
- Fast response cycle with standard samples delivered within 3-5 working days
- Professional technical support from our experienced engineering team
Customization Process
1. Demand Communication: Client requirements analysis and preliminary solutions
2. Program Design & Quotation: 2D/3D drawings and detailed quotation
3. Prototype Production & Testing: Dimensional and performance testing with reports
4. Mass Production & Delivery: Full-process quality monitoring and certified delivery
Typical Application Fields
- Automotive & Transportation
- Aerospace & Defense
- Industrial Machinery
- Electronics & Electrical
- Construction & Infrastructure
