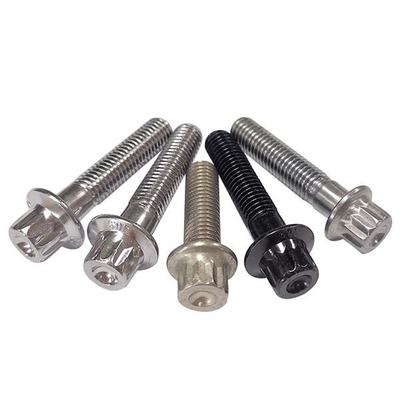

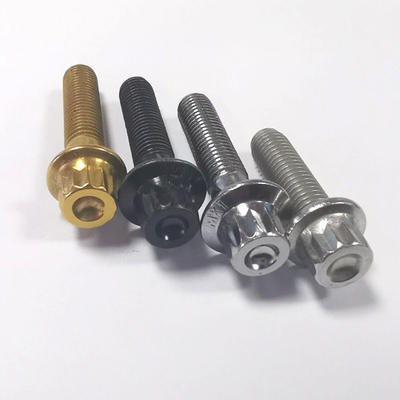

Ferry Cap Head Screws / Ferry Bolts i.e Chrome Flange Head 12-Point Cap Screws

Product Description:

12-Point Flange Screw (Ferry Socket Cap Screw)  also called Ferry Cap Screws because of the 12-point head and flanged bearing surface. The large gripping surface offers more torque and tighter wrenching by hand power. They can be installed and removed with a standard 12-point socket or pneumatic wrench. The point sizes range from ¼ inches to 4 inches and M6 to M100.There are different specifications to cover different sets of applications such as IFL-115, MIL SPEC, DIN 34822 and DIN 34821.

Features:

• Product Name: Ferry cap screws
• Material: Carbon Steel, Stainless Steel
• Thread Length: 20-100mm
• Head Style: Flat Round
• Thread Type: Metric Coarse
• Point Size: M6-M100
• Material Options: Stainless Steel
• Size Options: 1/4"-4"

Technical Parameters:

Applications:

Due to the recessed bolt head, 12 point bolts are typically seen in the oil and gas industry. When they clamp the end bolts together, it is not visible. 12 point bolts are also common in engine applications. The clamping load for engine applications is usually higher than most other applications, and 12 points will help achieve this.

Customization:

Packing and Shipping:

Product Packaging:

Cartons + pallet or polywooden case

Shipping:

We ship our mechanical fasteners globally using reputable logistics companies. The shipping cost and duration may vary depending on the destination and the quantity of the order. Customers can choose from express or standard shipping options at checkout.
