Marine Cast Steel Gate Valve Flanged PN10 DN150 As Per Standard JIS F7366 For Shipbuilding
  • name
  • name
  • name

Marine Cast Steel Gate Valve Flanged PN10 DN150 As Per Standard JIS F7366 For Shipbuilding

Brand Name: FLRS
Model Number: FV-05
MOQ: 5 PIECE
Packaging Details: carton
Payment Terms: L/C, T/T, Western Union, MoneyGram
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
ISO9001
Material:
Cast Steel
Standard:
JIS F7366
Media:
Water
Connection Type:
Flanged
Drive Model:
Manual
Sealing Surface Configuration:
Wedge Gate Valve
Supply Ability:
50000sets/month
Highlight:

Shipbuilding Cast Steel Gate Valve

,

Marine Cast Steel Gate Valve

,

Flanged Cast Steel Gate Valve

Product Description
  • MarineCast Steel Gate Valve is used to control the medium to open and close in the fuel oil, lubrication oil, steam, water pipe system with the temperature not over 300 degree centigrade.
  • Design Standard: JIS F7366-1996
  • Size: DN50-DN400
  • Test Standard: JIS 7400-1996
  • Hydraulic Test Pressure: Body- 2.1Mpa, Seat-1.54Mpa
  • Application: Shipbuilding, fire fighting, water, marine, oil and gas
  • Flange size as per JIS B2220 - 10K
  • Operation: Hand wheel, gear, square head

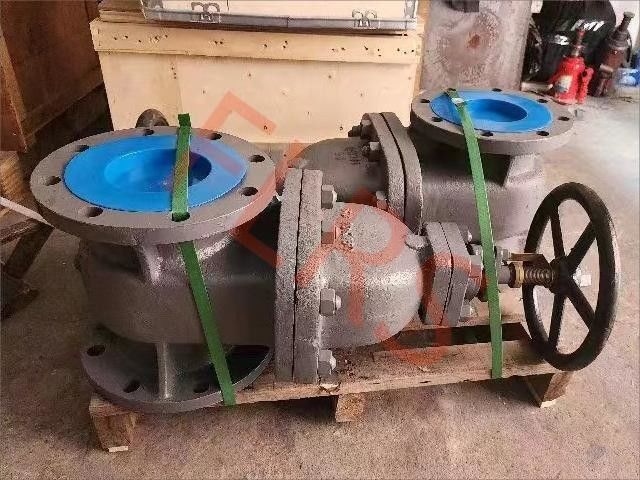

  • Marine Cast Steel Gate Valve Flanged PN10 DN150 As Per Standard JIS F7366 For Shipbuilding 0
