A182 F304 / 304L Raised Face Welding Neck Stainless Steel Pipe Flange SCH10S 3 Inch
Product Summary
Size 3 inch Wall Thickness SCH10S Stainless Steel A182 F304/304L Raised Face Welding Neck Pipe Flange Flanges are used in place of welded connections to enable maintenance operations since they can be dismantled quickly and conveniently, unlike other mechanical connectors. As a result, they are ...
Basic Properties
country of origin
China
Brand Name
FLRS
certificate
ISO9001
PRODUCT MODEL
FLRS-F058
Trading Properties
MOQ
2 pieces
payment method
T/T， L/C， Western union， paypal
Supply Capacity
100tons/month
Product Custom Attributes
Highlight
Welding Neck Stainless Steel Pipe Flange
,Raised Face Stainless Steel Pipe Flange
,SCH10S Welding Neck Flange
Pressure:
150LB
Wall Thickness:
SCH10S
Type:
Welding Neck
Face:
Raised Face
Package:
Plywood Case
Application:
Industrial,Petroleum
Connection:
Butt Weld
Technics:
Forged
Product Description
Detailed Specifications & Features

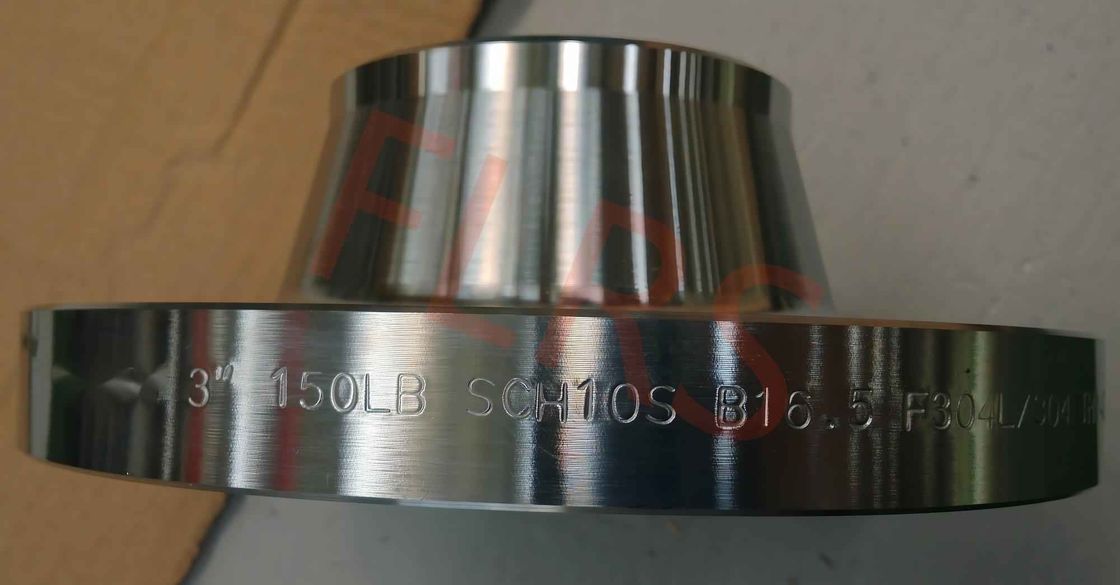

Size 3 inch Wall Thickness SCH10S Stainless Steel A182 F304/304L Raised Face Welding Neck Pipe Flange
Flanges are used in place of welded connections to enable maintenance operations since they can be dismantled quickly and conveniently, unlike other mechanical connectors. As a result, they are commonly used in temporary or moving installations, dismantling piping systems, transitions between dissimilar materials, or connections in areas unfit for solvent cementing.
Flange technical parameters:
| Facing Type | Raised-Face, Flat-Face, Ring Type Joint, Tongue and Groove, Male and Female |
| OD | 15mm-6000mm. 1/2"to 80".DN10-DN3600 |
| Pressure | 150#-3000#,PN0.6-PN400,5K-40K,API 2000-15000 |
| Standard | ANSI B16.5,ANSI B16.47 A/B, EN1092-1, SABA1123, JIS B2220, ALL DIN, ALL GOST, ALL UNI, AS2129, API 6A , BS4504, etc |
| Wall thickness | SCH5S, SCH10S, SCH10, SCH40S,STD, XS, XXS, SCH20,SCH30,SCH40, SCH60, SCH80, SCH160, XXS and etc. |
| Stainless steel | A182F304/304L, A182F316/316L, 316H, 321H,304H, 310H, A182F321, A182F310S, A182F347H, 347L, 317L, A182F316Ti, A182 F317, 904L, 1.4301, 1.4307, 1.4401, 1.4571, 1.4541 etc. |
| Carbon steel | A105, A350 LF1,A350LF2,A350LF3, Q345, E24, A42CP,A48CP, A515 GR55, A515GR60, A515GR70, A516 GR60, A516 GR70, ST37.2,ST45.8, Q235, STEEL20, P235GH,P245GH, P250GH, P265GH, P280GH, P295GP etc. |
| Duplex steel | UNS31803, SAF2205, UNS32205, UNS31500, UNS32750 , UNS32760, 1.4462, 1.4410, 1.4501, A182F51, A182F53 and etc. |
| Pipeline steel | A694 F42, A694F52, A694 F60, A694 F65, A694 F70, A694 F80 etc |
| Nickel alloy | inconel600, inconel625, inconel690, incoloy800, incoloy 825, incoloy 800H ,C22, C-276, Monel400, Alloy20 etc. |
| Cr-Mo alloy | A182F11, A182F5, A182F22, A182F91, A182F9, 16mo3 etc. |
| Application | Petroleum industry, Refinery Company, fertilizer industry, power station, shipbuilding, onshore platform |
| Attention | ready stock,faster delivery time;available in all sizes,customized;high quality |
