| Brand Name: | FLRS |
| Model Number: | FLRS-F056 |
| MOQ: | 5 piece |
| Packaging Details: | carton/ plywood cases/plywood pallets |
| Payment Terms: | T/T， L/C， Western union， paypal |

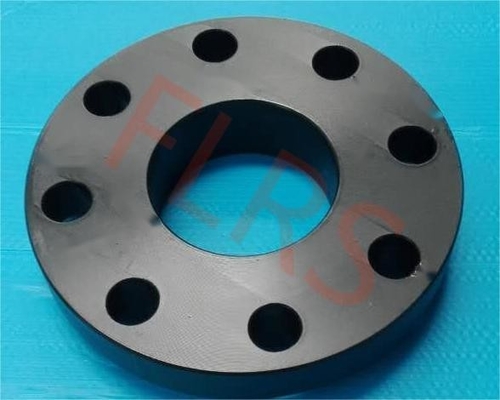

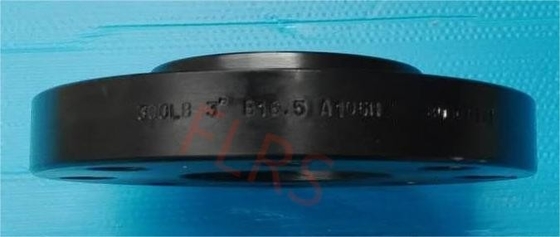

Material ASTM A105N Carbon Steel Slip-On Pipe Flange ANSI/ASME/DIN/EN1092-1 Standard For Petrochemical or Water Industry
Slip-on Flanges are at the low cost end of the scale, and do not require high accuracy when cutting the pipe to length. These SO Flanges can sometimes have a boss or hub, and can be made with a bore to suit either pipe or tube.
Since the inner diameter of the flange is slightly larger than the outer diameter of the pipe, the SO flange can be directly connected to equipment or pipe by fillet weld at the top and bottom of the flange. It is used to insert the pipe into the inner hole of the flange.
Flange Applications:
Water works, shipbuilding industry, petrol chemical & gas industry, power industry, valve industry,and general pipes connecting projects etc.
Flange technical parameters:
| Type | weld neck flange, slip on flange, blind flange, tube sheet, threaded flange, socket weld flange, plate flange, spectacle blind, LWN, Orifice flange, anchor flange. |
| OD | 15mm-6000mm. 1/2"to 80".DN10-DN3600 |
| Pressure | 150#-3000#,PN0.6-PN400,5K-40K,API 2000-15000 |
| Standard | ANSI B16.5,ANSI B16.47 A/B, EN1092-1, SABA1123, JIS B2220, ALL DIN, ALL GOST, ALL UNI, AS2129, API 6A , BS4504, etc |
| Wall thickness | SCH5S, SCH10S, SCH10, SCH40S,STD, XS, XXS, SCH20,SCH30,SCH40, SCH60, SCH80, SCH160, XXS and etc. |
| Stainless steel | A182F304/304L, A182F316/316L, 316H, 321H,304H, 310H, A182F321, A182F310S, A182F347H, 347L, 317L, A182F316Ti, A182 F317, 904L, 1.4301, 1.4307, 1.4401, 1.4571, 1.4541 etc. |
| Carbon steel | A105, A350 LF1,A350LF2,A350LF3, Q345, E24, A42CP,A48CP, A515 GR55, A515GR60, A515GR70, A516 GR60, A516 GR70, ST37.2,ST45.8, Q235, STEEL20, P235GH,P245GH, P250GH, P265GH, P280GH, P295GP etc. |
| Duplex steel | UNS31803, SAF2205, UNS32205, UNS31500, UNS32750 , UNS32760, 1.4462, 1.4410, 1.4501, A182F51, A182F53 and etc. |
| Pipeline steel | A694 F42, A694F52, A694 F60, A694 F65, A694 F70, A694 F80 etc |
| Nickel alloy | inconel600, inconel625, inconel690, incoloy800, incoloy 825, incoloy 800H ,C22, C-276, Monel400, Alloy20 etc. |
| Cr-Mo alloy | A182F11, A182F5, A182F22, A182F91, A182F9, 16mo3 etc. |
| Application | Petroleum industry, Refinery Company, fertilizer industry, power station, shipbuilding, onshore platform |
| Attention | ready stock,faster delivery time;available in all sizes,customized;high quality |
|
|
