2 Inch Alloy 31 Stainless Steel Raised Face Pipe Flange Welding Neck Smooth Finish

2 Inch Alloy 31 Stainless Steel Raised Face Pipe Flange Welding Neck Smooth Finish

  • 2 Inch Alloy 31 Stainless Steel Raised Face Pipe Flange Welding Neck Smooth Finish
  • 2 Inch Alloy 31 Stainless Steel Raised Face Pipe Flange Welding Neck Smooth Finish
  • 2 Inch Alloy 31 Stainless Steel Raised Face Pipe Flange Welding Neck Smooth Finish
2 Inch Alloy 31 Stainless Steel Raised Face Pipe Flange Welding Neck Smooth Finish
Product Details:
Place of Origin: China
Brand Name: FLRS
Certification: ISO9001
Model Number: FLRS-F054
Payment & Shipping Terms:
Minimum Order Quantity: 2 pieces
Packaging Details: carton/ plywood cases/plywood pallets
Delivery Time: 8-20days
Payment Terms: T/T, L/C, Western union, paypal
Supply Ability: 100tons/month
Contact Now
Detailed Product Description
Standard: ASME B16.5 Pressure: CLASS 150
Type: Welding Neck Material Grade: B462 UNS N08031
Wall Thickness: SCH40S Size: 2"
Face: Raised Face Finish: Smooth Finish
Package: Plywood Case Or Pallet
High Light:

Alloy 31 Welding Neck Flange

,

Smooth Finish Raised Face Pipe Flange

,

Stainless Steel Welding Neck Flange

ASTM B462 UNS N08031(Alloy 31) Stainless Steel Welding Neck Raised Face Pipe Flange 2 inch Smooth Finish




UNS N08031 (Alloy 31, 1.4562) Stainless Steel. N08031 stainless steel is a superaustenitic (highly alloyed) stainless steel formulated for primary forming into wrought products. Cited properties are appropriate for the annealed condition. 1.4562 is the EN numeric designation for this material. N08031 is the UNS number.



Flange technical parameters:



Facing Type Raised-Face, Flat-Face, Ring Type Joint, Tongue and Groove, Male and Female
OD 15mm-6000mm. 1/2"to 80".DN10-DN3600
Pressure 150#-3000#,PN0.6-PN400,5K-40K,API 2000-15000
Standard ANSI B16.5,ANSI B16.47 A/B, EN1092-1, SABA1123, JIS B2220, ALL DIN, ALL GOST,
ALL UNI, AS2129, API 6A , BS4504, etc
Wall thickness SCH5S, SCH10S, SCH10, SCH40S,STD, XS, XXS, SCH20,SCH30,SCH40, SCH60,
SCH80, SCH160, XXS and etc.
Stainless steel A182F304/304L, A182F316/316L, 316H, 321H,304H, 310H, A182F321, A182F310S, A182F347H, 347L, 317L, A182F316Ti, A182 F317, 904L, 1.4301, 1.4307, 1.4401,
1.4571, 1.4541 etc.
Carbon steel A105, A350 LF1,A350LF2,A350LF3, Q345, E24, A42CP,A48CP, A515 GR55,
A515GR60, A515GR70, A516 GR60, A516 GR70, ST37.2,ST45.8, Q235, STEEL20, P235GH,P245GH, P250GH, P265GH, P280GH, P295GP etc.
Duplex steel UNS31803, SAF2205, UNS32205, UNS31500, UNS32750 , UNS32760, 1.4462, 1.4410,
1.4501, A182F51, A182F53 and etc.
Pipeline steel A694 F42, A694F52, A694 F60, A694 F65, A694 F70, A694 F80 etc
Nickel alloy inconel600, inconel625, inconel690, incoloy800, incoloy 825, incoloy 800H ,C22,
C-276, Monel400, Alloy20 etc.
Cr-Mo alloy A182F11, A182F5, A182F22, A182F91, A182F9, 16mo3 etc.
Application Petroleum industry, Refinery Company, fertilizer industry, power station, shipbuilding, onshore platform
Attention ready stock,faster delivery time;available in all sizes,customized;high quality

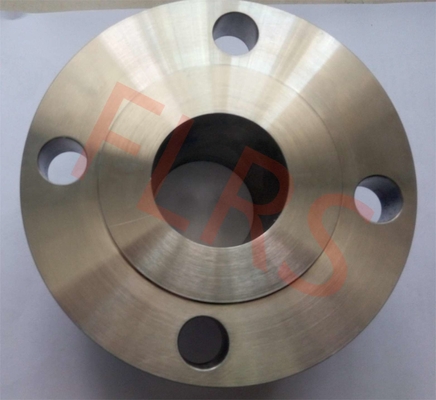

2 Inch Alloy 31 Stainless Steel Raised Face Pipe Flange Welding Neck Smooth Finish 0

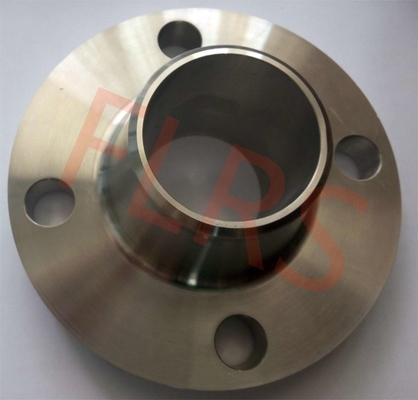

 2 Inch Alloy 31 Stainless Steel Raised Face Pipe Flange Welding Neck Smooth Finish 1

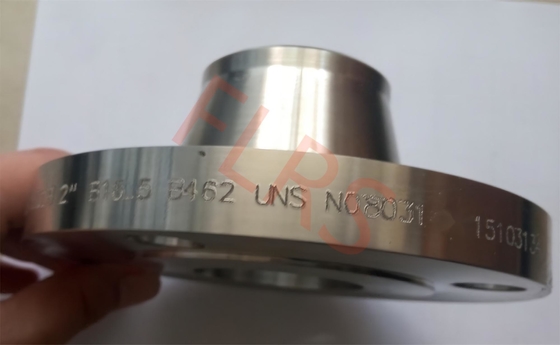

2 Inch Alloy 31 Stainless Steel Raised Face Pipe Flange Welding Neck Smooth Finish 2
