C22 Bolt And Nut Assembly / Hastelloy Hex Bolt C/W Hex Nut And Flat Washer

C22 Bolt And Nut Assembly / Hastelloy Hex Bolt C/W Hex Nut And Flat Washer

  • C22 Bolt And Nut Assembly /  Hastelloy Hex Bolt C/W Hex Nut And Flat Washer
  • C22 Bolt And Nut Assembly /  Hastelloy Hex Bolt C/W Hex Nut And Flat Washer
  • C22 Bolt And Nut Assembly /  Hastelloy Hex Bolt C/W Hex Nut And Flat Washer
  • C22 Bolt And Nut Assembly /  Hastelloy Hex Bolt C/W Hex Nut And Flat Washer
C22 Bolt And Nut Assembly /  Hastelloy Hex Bolt C/W Hex Nut And Flat Washer
Product Details:
Place of Origin: China
Brand Name: FLRS or OEM
Certification: ISO9001
Model Number: FLRS-F068
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: USD1-10per set
Packaging Details: carton/ plywood cases/plywood pallets
Delivery Time: 8-20days
Payment Terms: T/T, L/C, Western union, paypal
Supply Ability: 100tons/month
Contact Now
Detailed Product Description
Standard: ISO, DIN, ANSI, JIS, BS And Non-standard Size: Standard Or Customized
Material: Hastelloy C22 Material No.: UNS N06022
High Light:

C22 Bolt And Nut Assembly

,

Mechanical Hastelloy Hex Bolts

,

C/W Hex Nut And Flat Washer

C22 Bolt And Nut Assembly / Hastelloy Hex. Bolt C/W Hex. Nut And Flat Washer



Material Hastelloy C22
Standard ISO, DIN, ANSI, JIS, BS and Non-standard.Welcome to send us drawings
Certificate

Material Certication

Production

Capability

Auto-lathe turning:ODΦ0.5-20mm,Tol.±0.01mm

CNC lathe turning:ODΦ0.5-250mm,Tol.±0.005mm

CNC Milling:800x600mm(LxW),Tol.±0.05mm

Grinding:Tol.±0.002mm

Screw heading & rolling:Metric 0.8-M6,Unified Imperial#0-1/4''

Stamping:200T max

Manufacture Process Raw Material/QC/Heading/Thread/Heat Treatment/Surface Treatment/QC Inspection/Sorting and Packing/Shipping
Tolerance +/-0.05mm or as your request
Sample Service Samples for standard fasteners are all in free , You just pay for the shipping fee
Lead Time 7-15 days after order confirmed or as your request
After-sales Service We will follow up every customer and solve all your problems satisfied after sale





Hastelloy C22 is the all-round nickel-chromium-molybdenum-tungsten alloy.


USA Hastelloy C22 / N06022
Universal Alloy 22
Germany 2.4602
EU NiCr21Mo14W
Nichrome steel grade Hastelloy C22



Hastelloy C22 alloy has very good resistance to pitting, crevice corrosion and stress corrosion cracking. It has excellent resistance to aqueous media, including wet chloride, nitric acid or a mixture of oxidising acids containing chloride ions. Hastelloy C22 alloy also has ideal resistance to reducing and oxidising environments encountered in the process. Hastelloy C22 alloy is exceptionally resistant to a wide range of chemical environments, including highly oxidising substances such as ferric chloride, copper chloride, chlorine, hot contaminated solutions (organic and inorganic), formic acid, acetic acid, acetic anhydride, seawater and salt solutions. Hastelloy C22 has the ability to resist grain boundary precipitation formation in the weld heat affected zone, which makes it suitable for a wide range of chemical process applications in the welded state as well.

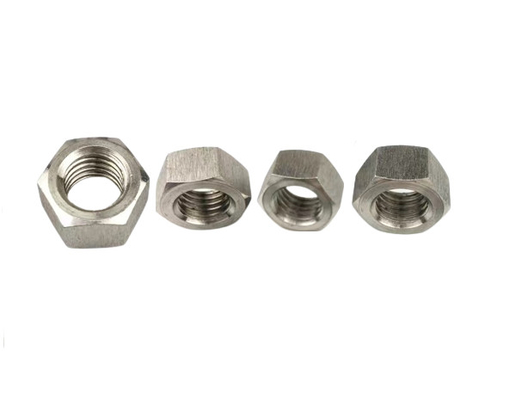

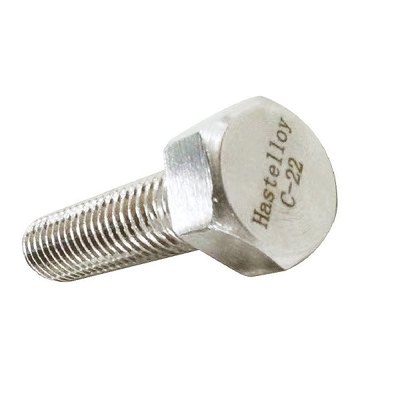

C22 Bolt And Nut Assembly /  Hastelloy Hex Bolt C/W Hex Nut And Flat Washer 0

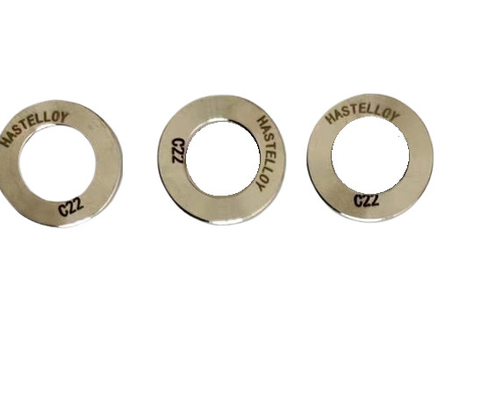

C22 Bolt And Nut Assembly /  Hastelloy Hex Bolt C/W Hex Nut And Flat Washer 1

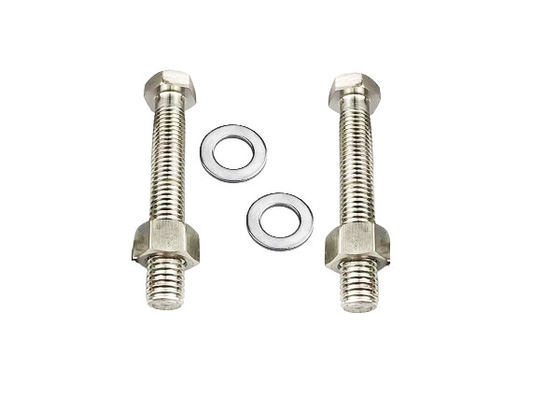

C22 Bolt And Nut Assembly /  Hastelloy Hex Bolt C/W Hex Nut And Flat Washer 2
