| Place of Origin: | China |
|---|---|
| Brand Name: | FLRS |
| Certification: | ISO9001 |
| Model Number: | FLRS-F035 |
| Minimum Order Quantity: | 2 pieces |
| Packaging Details: | carton/ plywood cases/plywood pallets |
| Delivery Time: | 8-20days |
| Payment Terms: | T/T， L/C， Western union， paypal |
| Supply Ability: | 100tons/month |
| Pressure: | CLASS 300 | Material Grade: | A182 F53/UNS S32750 |
|---|---|---|---|
| Wall Thickness: | SCH40S | Size: | 4" |
| Type: | Welding Neck | Face: | Raised Face |
| High Light: | Welding Neck Raised Face Pipe Flange,Super Duplex Stainless Steel Pipe Flange,A182 F53 Raised Face Flange |
||

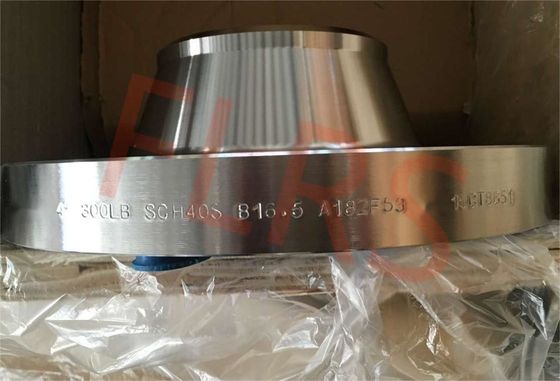

Super Duplex Stainless Steel A182 F53 / UNS S32750 Class 300 Welding-Neck Raised Face Pipe Flange
ASTM A182 F53 flanges refer to flanges made from super duplex stainless steel 2507 (UNS S32750) by a hot forging process. It is listed in Material Group 2.8 according to ASME B16.5 and ASME B16.47. The pressure-temperature ratings for ASTM A182 F53 flanges are the same as that for other duplex stainless steels. Super duplex stainless steel UNS S32750 Flange,A182 F53 Flange. UNS S32750 A182 F53 is a high alloy duplex stainless steel. F53 has excellent resistance to pitting and crevice corrosion resistance compared with the ordinary austenitic or duplex types.
Flange technical parameters:
| Facing Type | Raised-Face, Flat-Face, Ring Type Joint, Tongue and Groove, Male and Female |
| OD | 15mm-6000mm. 1/2"to 80".DN10-DN3600 |
| Pressure | 150#-3000#,PN0.6-PN400,5K-40K,API 2000-15000 |
| Standard | ANSI B16.5,ANSI B16.47 A/B, EN1092-1, SABA1123, JIS B2220, ALL DIN, ALL GOST, ALL UNI, AS2129, API 6A , BS4504, etc |
| Wall thickness | SCH5S, SCH10S, SCH10, SCH40S,STD, XS, XXS, SCH20,SCH30,SCH40, SCH60, SCH80, SCH160, XXS and etc. |
| Stainless steel | A182F304/304L, A182F316/316L, 316H, 321H,304H, 310H, A182F321, A182F310S, A182F347H, 347L, 317L, A182F316Ti, A182 F317, 904L, 1.4301, 1.4307, 1.4401, 1.4571, 1.4541 etc. |
| Carbon steel | A105, A350 LF1,A350LF2,A350LF3, Q345, E24, A42CP,A48CP, A515 GR55, A515GR60, A515GR70, A516 GR60, A516 GR70, ST37.2,ST45.8, Q235, STEEL20, P235GH,P245GH, P250GH, P265GH, P280GH, P295GP etc. |
| Duplex steel | UNS31803, SAF2205, UNS32205, UNS31500, UNS32750 , UNS32760, 1.4462, 1.4410, 1.4501, A182F51, A182F53 and etc. |
| Pipeline steel | A694 F42, A694F52, A694 F60, A694 F65, A694 F70, A694 F80 etc |
| Nickel alloy | inconel600, inconel625, inconel690, incoloy800, incoloy 825, incoloy 800H ,C22, C-276, Monel400, Alloy20 etc. |
| Cr-Mo alloy | A182F11, A182F5, A182F22, A182F91, A182F9, 16mo3 etc. |
| Application | Petroleum industry, Refinery Company, fertilizer industry, power station, shipbuilding, onshore platform |
| Attention | ready stock,faster delivery time;available in all sizes,customized;high quality |
