Raised Face Welding Neck Flange Super Duplex Stainless Steel A182 F51 / UNS S31803

Raised Face Welding Neck Flange Super Duplex Stainless Steel A182 F51 / UNS S31803

  • Raised Face Welding Neck Flange Super Duplex Stainless Steel A182 F51 / UNS S31803
  • Raised Face Welding Neck Flange Super Duplex Stainless Steel A182 F51 / UNS S31803
Raised Face Welding Neck Flange Super Duplex Stainless Steel A182 F51 / UNS S31803
Product Details:
Place of Origin: China
Brand Name: FLRS
Certification: ISO9001
Model Number: FLRS-F034
Payment & Shipping Terms:
Minimum Order Quantity: 2 pieces
Packaging Details: carton/ plywood cases/plywood pallets
Delivery Time: 8-20days
Payment Terms: T/T, L/C, Western union, paypal
Supply Ability: 100tons/month
Contact Now
Detailed Product Description
Pressure: 150LB Wall Thickness: SCH40S
Size: 3" Type: Welding Neck
Face: Raised Face Package: Plywood Case
High Light:

Super Duplex Stainless Steel Forged Flange

,

A182 F51 Raised Face Flange

,

Raised Face Stainless Steel Flange

Super Duplex Stainless Steel A182 F51/UNS S31803 Welding-Neck Flange Raised Face with Smooth Finish




Flanges are used when the piping joint needs dismantling. These are used mainly at equipment’s, valves and specialties. In certain pipelines where maintenance is a regular feature, breakout flanges are provided at definite intervals. A flanged joint is composed of three separate and independent although interrelated components; the flanges, the gaskets and the bolting. Special controls are required in the selection and application of all these elements to attain a leak-proof joint.

Flanges can be classified based on the method of attachment to the piping as below: Welding-Neck, Slip-on, Blind, Threaded, Socket-Weld, Flat, Lap-Joint, Reducing Flange



Flange technical parameters:



Facing Type Raised-Face, Flat-Face, Ring Type Joint, Tongue and Groove, Male and Female
OD 15mm-6000mm. 1/2"to 80".DN10-DN3600
Pressure 150#-3000#,PN0.6-PN400,5K-40K,API 2000-15000
Standard ANSI B16.5,ANSI B16.47 A/B, EN1092-1, SABA1123, JIS B2220, ALL DIN, ALL GOST,
ALL UNI, AS2129, API 6A , BS4504, etc
Wall thickness SCH5S, SCH10S, SCH10, SCH40S,STD, XS, XXS, SCH20,SCH30,SCH40, SCH60,
SCH80, SCH160, XXS and etc.
Stainless steel A182F304/304L, A182F316/316L, 316H, 321H,304H, 310H, A182F321, A182F310S, A182F347H, 347L, 317L, A182F316Ti, A182 F317, 904L, 1.4301, 1.4307, 1.4401,
1.4571, 1.4541 etc.
Carbon steel A105, A350 LF1,A350LF2,A350LF3, Q345, E24, A42CP,A48CP, A515 GR55,
A515GR60, A515GR70, A516 GR60, A516 GR70, ST37.2,ST45.8, Q235, STEEL20, P235GH,P245GH, P250GH, P265GH, P280GH, P295GP etc.
Duplex steel UNS31803, SAF2205, UNS32205, UNS31500, UNS32750 , UNS32760, 1.4462, 1.4410,
1.4501, A182F51, A182F53 and etc.
Pipeline steel A694 F42, A694F52, A694 F60, A694 F65, A694 F70, A694 F80 etc
Nickel alloy inconel600, inconel625, inconel690, incoloy800, incoloy 825, incoloy 800H ,C22,
C-276, Monel400, Alloy20 etc.
Cr-Mo alloy A182F11, A182F5, A182F22, A182F91, A182F9, 16mo3 etc.
Application Petroleum industry, Refinery Company, fertilizer industry, power station, shipbuilding, onshore platform
Attention ready stock,faster delivery time;available in all sizes,customized;high quality

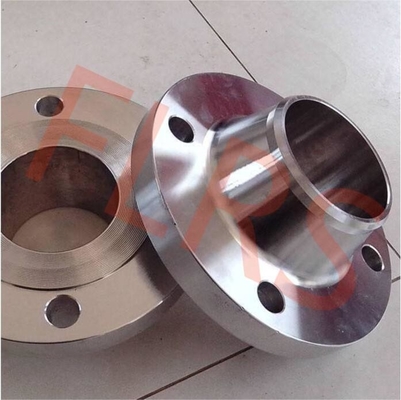

Raised Face Welding Neck Flange Super Duplex Stainless Steel A182 F51 / UNS S31803 0

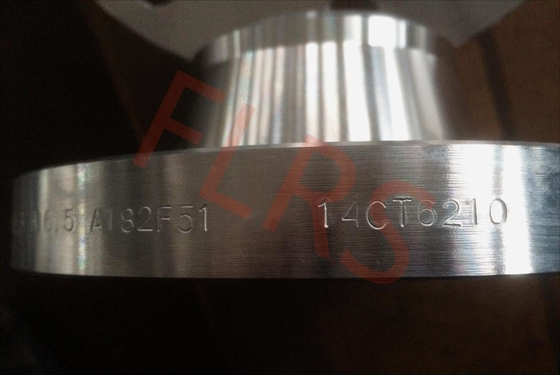

 Raised Face Welding Neck Flange Super Duplex Stainless Steel A182 F51 / UNS S31803 1

Raised Face Welding Neck Flange Super Duplex Stainless Steel A182 F51 / UNS S31803 2

Raised Face Welding Neck Flange Super Duplex Stainless Steel A182 F51 / UNS S31803 3
