| Brand Name: | FLRS or OEM |
| Model Number: | FLRS-B015 |
| MOQ: | 1 piece |
| Price: | USD0.1-1/PC |
| Packaging Details: | carton/ plywood cases/plywood pallets |
| Payment Terms: | T/T， L/C， Western union， paypal |

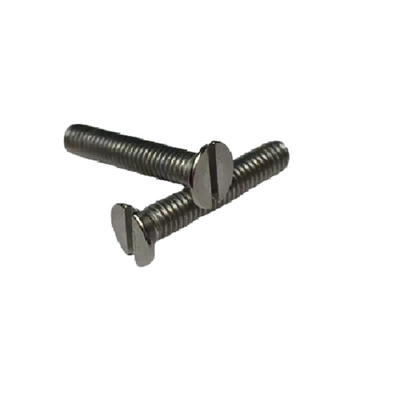

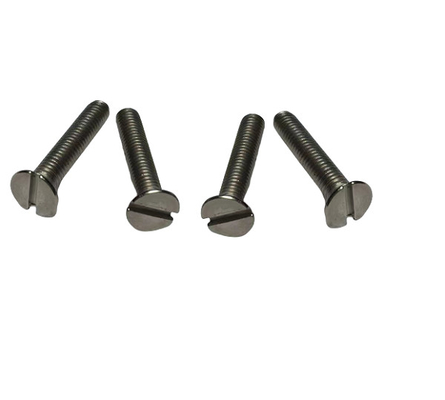

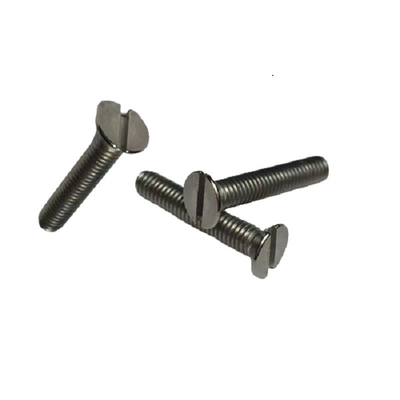

M1-M20 Slotted countersunk head screws / Ti Gr2 DIN 963 CSK Head Bolt
Countersunk head screw, also called countersunk head screw, also known as flat machine screw, is a kind of construction part. The head is a 90-degree cone, similar to common wood screws. The head has tool tightening grooves, such as a zigzag, cross, inner hexagon, plum blossom, pentagon, etc.
Screws are all connectors used to connect two objects. Generally, the head of the screw will protrude above the surface of the object to be connected, so that the surface will lose its smoothness. Countersunk head screws can sink under the surface to make the surface flat, and hard objects need to drill countersunk holes in the corresponding position of the countersunk head. In short, the countersunk head is the head of the screw that can keep the surface flat after installation.
| Standard | ANSI/ASME, JIS, EN, DIN, BS,GB, SH, HG, IFI, ISO and etc. |
| Size | Standard & non-standard, support customized |
| Material | Carbon Steel, Stainless Steel and etc. |
| Grade | SAE J429 Gr.2, 5,8; ASTM A307Gr.A, Class 4.8, 5.8, 6.8, 8.8, 10.9, 12.9 and etc. |
| Thread | UNC,UNF,BSW |
| Finish | Plain,ZincPlated(Clear/Blue/Yellow/Black),Black,HDPE,Fluorocarbon Coating, XYLAN |
| Packing | Bulk in cartons on wood pallet or according to customer special demand. |
| Application | Structural Steel; Metal Buliding; Oil&Gas; Tower&Pole; Wind Energy; Mechanical Machine; Automobile |
Driver:
Drawing:
Size:
| d | M1 | M1.2 | M1.4 | M1.6 | M2 | M2.5 | M3 | (M3.5) | M4 | |
| P | 0.25 | 0.25 | 0.3 | 0.35 | 0.4 | 0.45 | 0.5 | 0.6 | 0.7 | |
| a | Max | 0.5 | 0.5 | 0.6 | 0.7 | 0.8 | 0.9 | 1 | 1.2 | 1.4 |
| dk | Max | 1.9 | 2.3 | 2.6 | 3 | 3.8 | 4.7 | 5.6 | 6.5 | 7.5 |
| Min | 1.76 | 2.06 | 2.46 | 2.86 | 3.5 | 4.4 | 5.3 | 6.14 | 7.14 | |
| k | Max | 0.6 | 0.72 | 0.84 | 0.96 | 1.2 | 1.5 | 1.65 | 1.93 | 2.2 |
| n | Max | 0.45 | 0.5 | 0.5 | 0.6 | 0.7 | 0.8 | 1 | 1 | 1.2 |
| Min | 0.31 | 0.36 | 0.36 | 0.46 | 0.56 | 0.66 | 0.86 | 0.86 | 1.06 | |
| r | Max | 0.1 | 0.12 | 0.14 | 0.16 | 0.2 | 0.25 | 0.3 | 0.35 | 0.4 |
| t | Max | 0.3 | 0.35 | 0.4 | 0.45 | 0.6 | 0.7 | 0.85 | 1 | 1.1 |
| Min | 0.2 | 0.25 | 0.28 | 0.32 | 0.4 | 0.5 | 0.6 | 0.7 | 0.8 | |
| x | Max | - | - | - | 0.9 | 1 | 1.1 | 1.25 | 1.5 | 1.75 |
| d | M5 | M6 | M8 | M10 | M12 | (M14) | M16 | (M18) | M20 | |
| P | 0.8 | 1 | 1.25 | 1.5 | 1.75 | 2 | 2 | 2.5 | 2.5 | |
| a | Max | 1.6 | 2 | 2.5 | 3 | 3.5 | 4 | 4 | 5 | 5 |
| dk | Max | 9.2 | 11 | 14.5 | 18 | 22 | 25 | 29 | 33 | 36 |
| Min | 8.84 | 10.57 | 14.07 | 17.57 | 21.48 | 24.48 | 28.48 | 32.38 | 35.38 | |
| k | Max | 2.5 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 |
| n | Max | 1.51 | 1.91 | 2.31 | 2.81 | 3.31 | 3.31 | 4.37 | 4.37 | 5.37 |
| Min | 1.26 | 1.66 | 2.06 | 2.56 | 3.06 | 3.06 | 4.07 | 4.07 | 5.07 | |
| r | Max | 0.5 | 0.6 | 0.8 | 1 | 1.2 | 1.4 | 1.6 | 1.8 | 2 |
| t | Max | 1.3 | 1.6 | 2.1 | 2.6 | 3 | 3.5 | 4 | 4.5 | 5 |
| Min | 1 | 1.2 | 1.6 | 2 | 2.4 | 2.8 | 3.2 | 3.6 | 4 | |
| x | Max | 2 | 2.5 | 3.2 | 3.8 | 4.4 | 5 | 5 | 6.3 | 6.3 |
Packing:
Packing Details :Construction fastener bags+cartons+pallets,or according to customer ' s requirement,
1. We have several sizes of packing dimensions, can be 25kg per carton;
2. For large orders, we can design specific sizes of boxes and cartons.
3. Normal Packing: 1000pcs/500pcs/250pcs per plastic bag,bags into cartons,then on pallet.
4. Can provide special packing as clients request;
Material:
Titanium alloy has high strength and low density, good mechanical properties, good toughness and corrosion resistance. In addition, the process performance of titanium alloy is poor, cutting is difficult, and it is very easy to absorb impurities such as hydrogen, oxygen, nitrogen and carbon during hot processing. There is also poor wear resistance and complex production process. The most widely used titanium alloys are Ti-6Al-4V (TC4), Ti-5Al-2.5Sn (TA7) and industrial pure titanium (TA1, TA2 and TA3).
Chemical composition: balance of titanium (Ti), nitrogen (N) ≤ 0.03, carbon (C) ≤ 0.08, hydrogen (H) ≤ 0.013, iron (Fe) ≤ 0.20, oxygen (O) ≤ 0.15
Mechanical properties: Tensile strength: 340Mpa≤σb≤410Mpa, yield strength σb≥165Mpa: Elongation: δ≥27%
|
|
