| Brand Name: | FLRS |
| Model Number: | FLRS-F018 |
| MOQ: | 1 piece |
| Packaging Details: | carton/ plywood cases/plywood pallets |
| Payment Terms: | T/T， L/C， Western union， paypal |

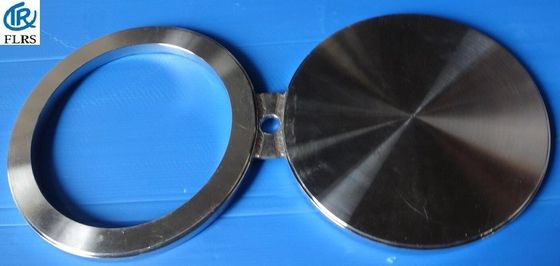

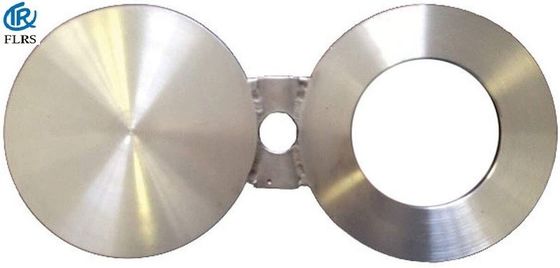

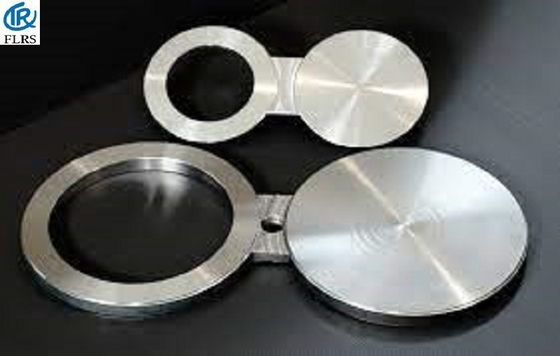

Stainless Steel Material of ASTM A182 F316 CLASS150 Figure 8 Spectacle Blind Flange As Per ASME B16.48
A spectacle blind flange is generally a piece of metal that is cut to fit between two pipe flanges and usually sandwiched between two gaskets. There are three types of spectacle flange: spacer fange, spade fange (paddle flange), spectacle blind flange. ... The shape of spectacle flange is like glasses.
Spectacle Blinds are simple safety devices that are installed between two pipe flanges. ... To stop the flow in the pipeline, the blind end is rotated into place between the flanges. This positively isolates the downstream piping and equipment. A Spectacle Blind is generally installed as a permanent fixture.
Flange Applications:
Water works, shipbuilding industry, petrol chemical & gas industry, power industry, valve industry,and general pipes connecting projects etc.
Flange technical parameters:
| Type | weld neck flange, slip on flange, blind flange, tube sheet, threaded flange, socket weld flange, plate flange, spectacle blind, LWN, Orifice flange, anchor flange. |
| OD | 15mm-6000mm. 1/2"to 80".DN10-DN3600 |
| Pressure | 150#-3000#,PN0.6-PN400,5K-40K,API 2000-15000 |
| Standard | ANSI B16.5,ANSI B16.47 A/B, EN1092-1, SABA1123, JIS B2220, ALL DIN, ALL GOST, ALL UNI, AS2129, API 6A , BS4504, etc |
| Wall thickness | SCH5S, SCH10S, SCH10, SCH40S,STD, XS, XXS, SCH20,SCH30,SCH40, SCH60, SCH80, SCH160, XXS and etc. |
| Stainless steel | A182F304/304L, A182F316/316L, 316H, 321H,304H, 310H, A182F321, A182F310S, A182F347H, 347L, 317L, A182F316Ti, A182 F317, 904L, 1.4301, 1.4307, 1.4401, 1.4571, 1.4541 etc. |
| Carbon steel | A105, A350 LF1,A350LF2,A350LF3, Q345, E24, A42CP,A48CP, A515 GR55, A515GR60, A515GR70, A516 GR60, A516 GR70, ST37.2,ST45.8, Q235, STEEL20, P235GH,P245GH, P250GH, P265GH, P280GH, P295GP etc. |
| Duplex steel | UNS31803, SAF2205, UNS32205, UNS31500, UNS32750 , UNS32760, 1.4462, 1.4410, 1.4501, A182F51, A182F53 and etc. |
| Pipeline steel | A694 F42, A694F52, A694 F60, A694 F65, A694 F70, A694 F80 etc |
| Nickel alloy | inconel600, inconel625, inconel690, incoloy800, incoloy 825, incoloy 800H ,C22, C-276, Monel400, Alloy20 etc. |
| Cr-Mo alloy | A182F11, A182F5, A182F22, A182F91, A182F9, 16mo3 etc. |
| Application | Petroleum industry, Refinery Company, fertilizer industry, power station, shipbuilding, onshore platform |
| Attention | ready stock,faster delivery time;available in all sizes,customized;high quality |
|
|
