| Brand Name: | FLRS or OEM |
| Model Number: | FLRS-G018 |
| MOQ: | 5 sets |
| Packaging Details: | carton/ plywood cases/plywood pallets |
| Payment Terms: | T/T， L/C， Western union， paypal |

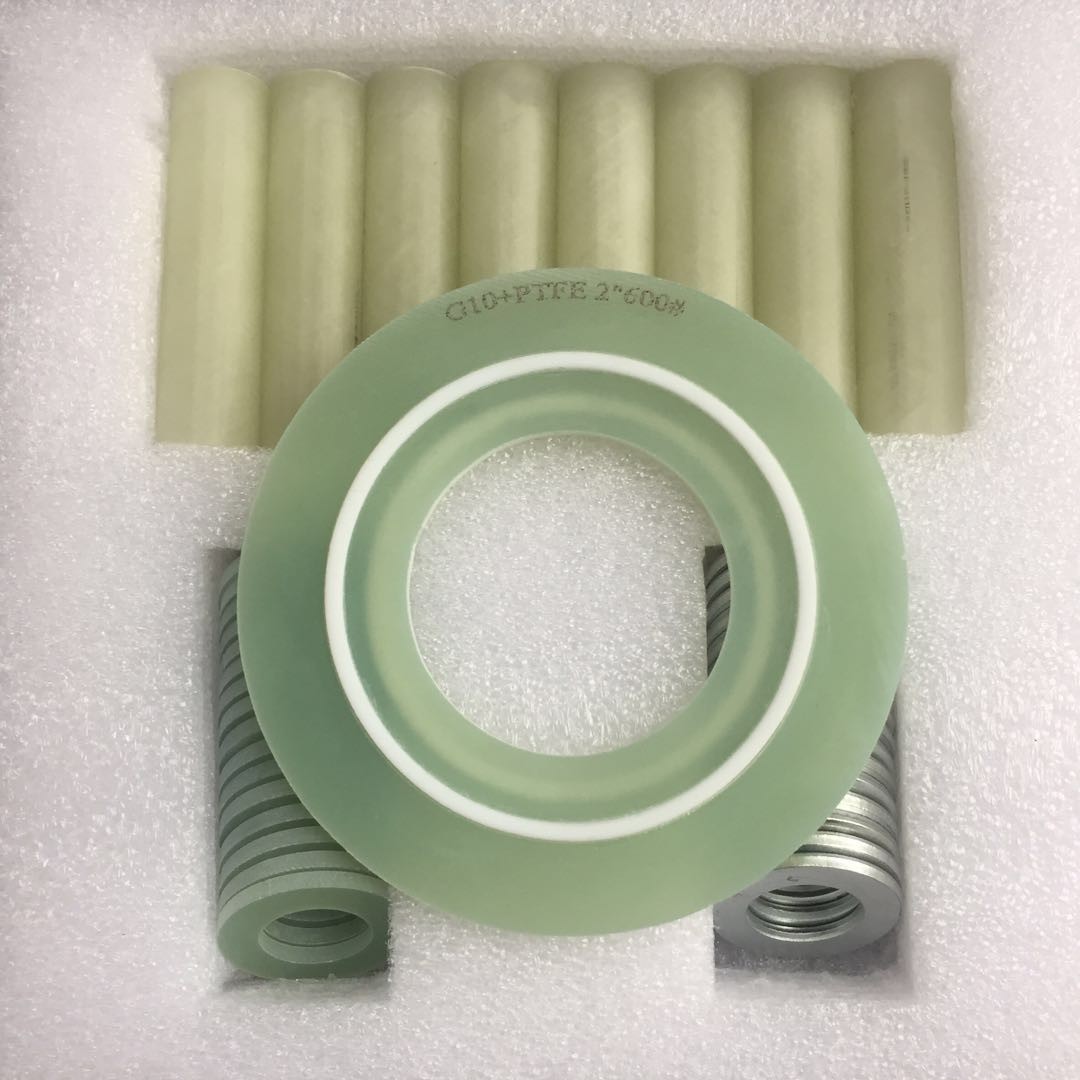

Neoprene Faced Plain Phenolic Flange Insulation Gasket Kit for ASME B16.5 Steel Flange
| Item | Insulation Material | Material of Insulation Gasket | Max. Temp.(℃) | Insulation Resistance(Ω) | ||
| Sleeve | Washer | Pressure Class (lb) | ||||
| General | PTFE Solid Gasket | -100～100 | Over 2.0 x 1013 | |||
| 150 | ||||||
| Reinforced PTFE Gasket | -200～200 | 1.3 x 1011 | ||||
| 300 | ||||||
| Neoprene Faced Phenolic Gasket | -30～120 | RUBBER | CR 1.6 x 107 | |||
| PTFE | 150 | |||||
| Epoxy | Epoxy | Glass Reinforced Epoxy Plate Gasket with Rubber O-Ring | -40～150 | EPDM 2.0 x 1013 | ||
| Phenolic | Phenolic | 600 | ||||
| Reinforced Phenolic Plate Gasket with Rubber O-ring | -40～150 | VITON 9.7 x 109 | ||||
| 600 | ||||||
| Reinforced Phenolic Plate Gasket with Rubber O-ring | -60～150 | NBR 1.3 x 1011 | ||||
| 600 | ||||||
| High Pressure | Mica | Mica | Epoxy Faced Metal Plate with Rubber O-ring | 150 | - | |
| PTFE | Epoxy | 1500 | ||||
| Epoxy | Phenolic | Epoxy faced Metal Plate with PTFE Seal | 150 | Over 2.0 x 1013 | ||
| Phenolic | 2500 | |||||
| High Temp & Pressure | Mica | Mica | KAMMPROFILE Gasket with STARPITE | 1000 | 9.9 ｘ 1010 | |
Details:
Insulation sets are used for pipeline flange corrosion protection and for complete electrical insulation protection where a seal in required between dissimilar flange materials. There are three standard styles available to suit raised face, full face and ring grooved flanged.
Gasket Type:
Type E (Full Face Gasket)This gasket kit provides complete protection of both flange faces. The gasket has same outside diameter of
flanges. This feature will prevent collection of foreign matter between the flange faces to ensure complete cathodic isolation.
Type F (Rased Face Gasket)
This gasket is manufactured to fit only the raised face surface of the flanges. Outside diameter of the gasket is designed to be slightly less
than the inside diameter of the bolt circle. It is recommended that the flanges be wrapped to prevent foreign material from "shorting out"
the flanges.
Type RJ (Ring Type Joint Gasket)
|
