| Place of Origin: | China |
|---|---|
| Brand Name: | FLRS or OEM |
| Certification: | ISO9001 |
| Model Number: | FLRS-SAE 001 |
| Minimum Order Quantity: | 1 piece |
| Packaging Details: | carton/ plywood cases/plywood pallets |
| Delivery Time: | 8-20days |
| Payment Terms: | T/T， L/C， Western union， paypal |
| Supply Ability: | 100tons/month |
| Material: | Stainless Steel,Carbon Steel | Size: | 1/2"-5" |
|---|---|---|---|
| Surface Treatment: | Galvanized Etc,Black Oxidation,POLISH/Chrome Plated | Packing: | Wooden Pallet Or As Per Customers Requirements. |
| Standard: | JIS | Type: | Split |
| Sample: | For Free | ||
| High Light: | SAE J518 Hydraulic Split Flange,5" Hydraulic Split Flange,35MPa Hydraulic Split Flange |
||

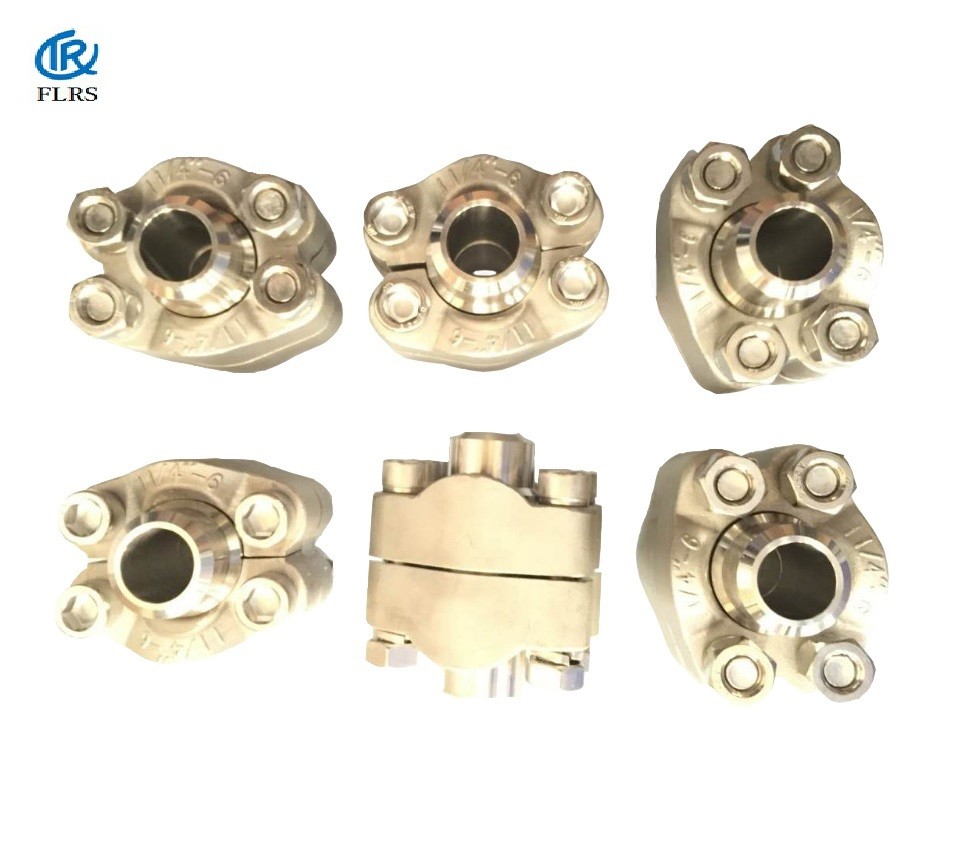

Galvanized 35MPa 5" SAE J518 Hydraulic Split Flange/SAE Flange/ Hydraulic Split Tube Square Flange
SAE split flange halves clamp code 61 manufacturer in China, Made as per ISO 6162 and SAE J518 standards. SAE Flange is used for connecting Hydraulic hose assembly, hydraulic tube adapters, hydraulic tubing and hydraulic piping of engineering construction equipment. :
1.Working pressure of SAE code 61 series flange clamps is 3000 PSI, 3,5 MPa (35 bar) to 35 MPa (350 bar).
2.The external surface Corrosion protection of all carbon steel flange clamps,shall be protected with an appropriate coating to pass a minimum 72-h salt spray test in accordance with ISO 9227.
3.Test requirement for pressure/temperature: Flange type connections conforming to this part of ISO 6162 shall be subjected to the burst and cyclic endurance tests specified in ISO 19879 to verify that they meet the specified pressure/temperature requirement.
| feature | advantage | Benefit |
| SAE J518 and ISO 6162 | controls dimensions and tolarance of code 61 and 62 port connections | insures interchangeability and consistency |
| Forged Construction | reliable, long life performance, compact envelop size,no sharp edges | no downtime, reduced costs and weight |
| over 60 Configuration | flexibility in plumbing, match system needs | best solution and value |
| Parflange Technology | Designed to be used with code 61/62 fittings | eliminates messy and time consuming brazing process |
| Mounting Hardware | Grade 8 Bolts standard | performs in rigorous applications for the life of the flange |
| Flange Kits | Flange with hardware for Mounting(o-ring, bolts and lockwashers) | Reduces order and assembly error |
