ASME B16.36 A105 A182 Forged Weld Neck Orifice Flange

Basic Information
Place of Origin: China
Brand Name: FLRS or OEM
Certification: ISO9001
Model Number: FLRS-F001
Minimum Order Quantity: 1 piece
Packaging Details: carton/ plywood cases/plywood pallets
Delivery Time: 8-20days
Payment Terms: T/T, L/C, Western union, paypal
Supply Ability: 100tons/month
Detail Information
Process: Forging Accessories: Jack Screw And Plug
Manufacturing Standard: ASME B16.36 Packing: Wooden Case,as Custom Demand,wooden Pallet Or As Per Customers Requirements.,Color Box Or Customized
High Light:

Forged Weld Neck Orifice Flange


A182 Weld Neck Orifice Flange


ASME B16.36 Orifice Flange

Product Description

ASME B16.36/16.5 A105 A182 Forged Weld Neck Orifice Flange with Jack Screw


Product Name:A105 CS orifice pipe flange B16.36
Standard: AISI, DIN, JIS
Material: Carbon Steel & Stainless Steel & Inconel Alloy
Product Size: 1/2" - 36"
Pressure Ratings: ANSI Class 150, 300, 600, 900, 1500 and 2500
DIN PN 6, PN 10, PN16, PN25, PN40 and PN64
JIS 5K, 10K, 16K and 20K
Surface: Varnished transparent oil, rust-proof oil, hot galvanizing
Application: Construction, industrial material
PACKING: In wooden cases, wooden pallets or as per customers special requirement

1. A105 CS orifice pipe flange B16.36
2. High quality products
3. Compective price
4. Fast delivery


Steel Flanges
Flange Type Weld Neck Flange, Socket Weld Flange, Slip On Flange, Blind Flange, Thread Flange,

Lap Joint Flange, Plate Flange, Orifice Flange, Spectacle Flange, Figure 8 Flange,

Paddle Blank, Paddle Spacer, Anchor Flange, Single Blind, Ring Spacer,

Reducing Socket Weld flange, Reducing Weld Neck flange, Long Weld Neck Flange,

SAE Flanges, Hydraulic Flanges,

Customized Flanges with drawing.
Material Carbon steel A105, A105N, ST37.2, 20#, 35#, C40, Q235,

A350 LF2 CL1/CL2, A350 LF3 CL1/CL2,

A694 F42, F46, F50, F60, F65, F70,

A516 Gr.60, Gr.65, Gr.70
Alloy steel A182 F11, A182 F22
Austenitic stainless steel A182 F304/304L, F316L, A182 F316H,

F310, F321, F321H, F347, F347H
Duplex stainless steel A182 F51
Super Duplex stainless steel A182 F53, A182 F55, A182 F60
Nickel alloy Nickel 200, Nickel 201
Titanium alloy Titan Gr.1, Titan Gr.2
Hastelloy Hastelloy C-276, Hastelloy C-22, Hastelloy C-4
Inconel Inconel 600, Inconel 625, Inconel 800,

Inconel 800H
Monel Monel 400, Monel K500
Size DN15 - DN3000
Pressure Class 150# - 2500#, PN 2.5- PN40, JIS 5K - 20K, 3000PSI, 6000PSI
Connection Way Flat Face (FF), Raised Face (RF), Ring Joint (RTJ), MFM, TG
Technical Forged
Package Plywood Case/ Wooden Case/ Customized Package

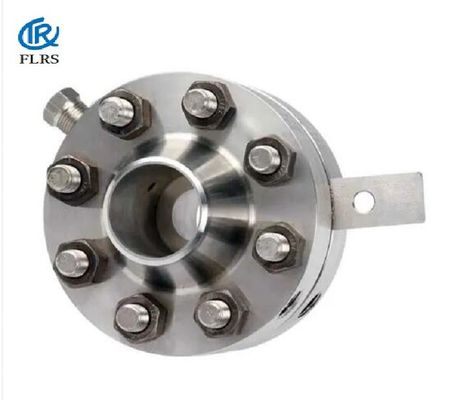

ASME B16.36 A105 A182 Forged Weld Neck Orifice Flange 0

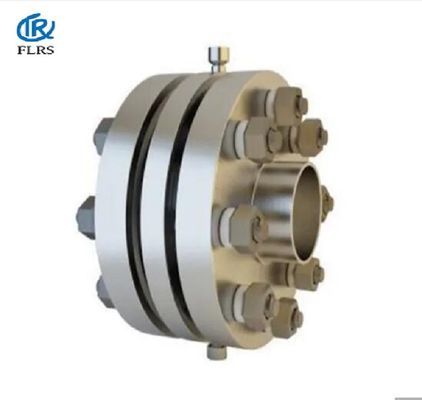

 ASME B16.36 A105 A182 Forged Weld Neck Orifice Flange 1

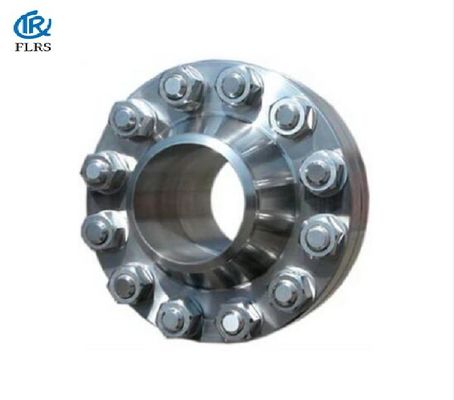

ASME B16.36 A105 A182 Forged Weld Neck Orifice Flange 2

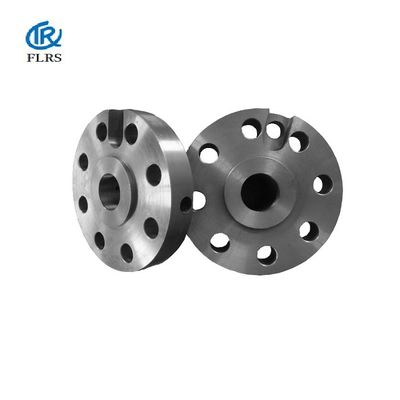

ASME B16.36 A105 A182 Forged Weld Neck Orifice Flange 3
