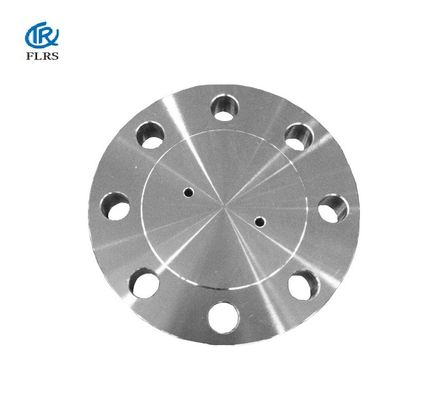

3000MM ASME B16.5 304 316 304L 316L Steel Blind Flange

Name: 3000MM ASME B16.5 304 316 304L 316L Steel Blind Flange
Brand: Shaanxi Flourish Industrial Co., Ltd.
SKU: FLRS-F005
Price: 492.01 USD
Availability: InStock

Product Summary

Forged Stainless steel Blind Flange ASME B16.5 304 316 304L 316L OEM Manufacturer The products materials have passed EN10204-3.1 certification, covering various grades of: low carbon steel, alloy steel, stainless steel, ductile iron, aluminum alloy, copper alloy, titanium alloy. 　　The main processes ...

Quality 3000MM ASME B16.5 304 316 304L 316L Steel Blind Flange factory

Basic Properties

country of origin

China

Brand Name

FLRS or　OEM

certificate

ISO9001

PRODUCT MODEL

FLRS-F005

Trading Properties

MOQ

1 piece

payment method

T/T， L/C， Western union， paypal

Supply Capacity

100tons/month

Product Custom Attributes

Highlight

316L Steel Blind Flange

ASME B16.5 Steel Blind Flange

3000MM Steel Blind Flange

Standard:

Customized Drawing

Size:

OD Max. 3000MM

Material:

Alloy, Titanium, Duplex Stainless Steel

Type:

Non Standard

Shape:

Customized

Tags:

carbon steel flange metal flange stainless steel flange

Product Description

Detailed Specifications & Features

Forged Stainless steel Blind Flange ASME B16.5 304 316 304L 316L OEM Manufacturer

The products materials have passed EN10204-3.1 certification, covering various grades of: low carbon steel, alloy steel, stainless steel, ductile iron, aluminum alloy, copper alloy, titanium alloy.

　　The main processes are: free forging, die forging, rolling ring, high pressure casting, centrifugal casting, normalizing, quenching and tempering, solution treatment, aging treatment, carbonitriding, turning, milling, drilling, grinding, hobbing, high frequency quenching, galvanizing, chrome plating, anodizing, powder spraying and other processes.

　　Rings and plates dimensions: Max 3000mm, shafts length: Max 12000mm, single piece weight: Max 16 Tons, at the same time we are good at terminal machining of complex products, dimension accuracy: Min 0.01mm, roughness: Min Ra0.6.

　　Products can be strictly examined by chemical composition, tensile strength, yield strength, reduction of area, impact at low temperature, intergranular corrosion, hardness, metallographic, NDT, size, static balance etc performance parameter.

　　Products are widely used in: aerospace, ships, trains, automobiles, engineering vehicles, chemical industry and petroleum refining, wellheads, x-mas tree equipment, mining machinery, food machinery, hydraulic and wind power generation, new energy equipment etc field.

Product Features:

1. Flange Types: Slip-On Flange, Welding Neck Flange, Blind Flange, Socket Welding Flange,
Threaded Flange, Lap Joint Flange and Plate etc;
2. High quality flanges;
3. Compective price;
4. Fast delivery;
5. High resistant to pressure;
6. Well sealing;
7. Flat welding and butt welding;

Product Name	Carbon steel / Stainless steel / Alloy Flanges
Standard	ASME/ANSI B16.5/16.36/16.47A/16.47B, MSS S44, ISO70051, JISB2220, BS1560-3.1, API7S-15, API7S-43, API605, EN1092
Type	WN Flange, So Flange, LJ Flange, LWN Flange, SW Flange, Orifice Flange, BL/PL Flange, Reducing Flange, figure 8 blind (blank&Spacer) Special Flange: According to the drawing Picture
Materials	Nickel Alloy: ASTM/ASME S/B366 UNS N08020, N04400, N06600, N06625, N08800, N08810, N08825, N10276,N10665,N10675 Super Stainless Steel: ASTM/ASME S/A182 F44, F904L, F317L Stainles steel: ASTM/ASME S/A182 F304, F304L, F304H, F316, F316L, F321, F321H, F347H Duplex Steel: ASTM A182 F51, F53, F55 Alloy Steel: ASTM/ASME S/ A182 F11, F12, F22, F5, F9, F91 Carbon Steel: ASTM/ASME S/A105, ASTM/ASME S/A350 LF2, ASTM/ASME S/A694/A694M, F42, F52, F56, F60, F65, F70....ASTM/ASME S/A350 LF2, ASTM/ASME S/A694/A694M, F42, F52, F56, F60, F65, F70....
Dimension	(150#,300#,600#): DN15-DN1500 900# : DN15-DN1000 1500#: DN15-DN600 2500#:D N15-DN300
Marking	Supplier Logo + Standard + Size(mm) + HEAT NO +or as your requirement
Test	Chemical Component Analysis, Mechanical Properties, Metallurgical Analysis, Impact Testing, Hardness testing , Ferrite Testing, Intergranular corrosion testing, X-ray Inspection (RT), PMI, PT, UT, HIC & SSC test, etc. or as your requirment
