High Pressure Forged Stainless Steel Flange Large Diameter Carbon Steel Pipe Flanges

High Pressure Forged Stainless Steel Flange Large Diameter Carbon Steel Pipe Flanges

  • High Pressure Forged Stainless Steel Flange Large Diameter Carbon Steel Pipe Flanges
  • High Pressure Forged Stainless Steel Flange Large Diameter Carbon Steel Pipe Flanges
  • High Pressure Forged Stainless Steel Flange Large Diameter Carbon Steel Pipe Flanges
  • High Pressure Forged Stainless Steel Flange Large Diameter Carbon Steel Pipe Flanges
High Pressure Forged Stainless Steel Flange Large Diameter Carbon Steel Pipe Flanges
Product Details:
Place of Origin: China
Brand Name: FLRS or OEM
Certification: ISO9001
Model Number: FLRS-F003
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Packaging Details: carton/ plywood cases/plywood pallets
Delivery Time: 8-20days
Payment Terms: T/T, L/C, Western union, paypal
Supply Ability: 100tons/month
Contact Now
Detailed Product Description
Face Surface: LM/LF/TONGUE GROOVE/RTJ Size: 1/2" To 80" Or As Request
Finish: Zinc Plated, Black Coating Origin: China
High Light:

stainless steel flange

,

carbon steel flange

Large Diameter Steel Flange

Type: Weling Neck Flange,Blind Flange, Plated Flange, Slip On Flanges, Threaded, Socket Weld

Processing Techinque: Free Forging, Plate Cutting, Casting

Size: 1/2"-80"
1/2" - 24" ASME B16.5
25"- 80" ASME B16.47, larger size according to client's drawing.

Wall Thickness : STD, SCH40, SCH80, SCH160. SCHXXS

Material
Carbon Steel:
ASTM A105, ASTM A350 LF1/ LF2/LF3, A235, P235GH etc
ASTM A694 F42/F46/F52/F56/F60/F65/F70, etc

Stainless Steel: ASTM A182, F304/304L, F316/316L

Alloy Steel: ASTM A182 A182 F12, F11, F22, F5, F9, F91etc.

Standard:
ANSI : ANSI B16.5, ANSI B16.47, MSS SP44, ANSI B16.36, ANSI B16.48

DIN : DIN2527, DIN2566, DIN2573, DIN2576, DIN2641, DIN2642, DIN2655, DIN2656, DIN2627, DIN2628, DIN2629, DIN 2631, DIN2632, DIN2633, DIN2634, DIN2635, DIN2636, DIN2637, DIN2638, DIN2673

B.S : BS4504, BS1560



Large Diameter Duplex Steel Flange

size

1/2" - 24" ASME B16.5

25"- 80" ASME B16.47,larger size according to client's drawing.

Flange Type

Weling Neck Flange,Blind Flange, Plated Flange, Slip On Flanges, Threaded, Socket Weld

Flange Face

RTJ.RF.FF

Pressure

150Lbs, 300Lbs, 600Lbs, 900Lbs, 1500Lbs, 2500Lbs
PN6, PN10, PN16, PN20, PN25, PN40. PN63, PN100

Standard

ASME B16.5 & ASME B16.47, or according to client's drawing.

Material

Carbon steel (ASTM A105, A350 LF2,etc)

Stainless steel (ASTM A182 F304, F304L, F316, F316L, F321, etc)

Alloy steel (ASTM A694 A182 F12, F11, F22, F5, F9, F91,etc)

Pipeline steel (ASTM A694 F42 F46 F52 F56 F60 F65 F70,etc)




Carbon/ Stainless/ Alloy Steel Flanges
Material Carbon steel ASTM A105. ASTM A350 LF1. LF2, A234, P235GH
ASTM A694 F42/F46/F52/F56/F60/F65/F70, etc
Stainless steel ASTM A182, F304/304L, F316/316L
Alloy steel ASTM A182 A182 F12, F11, F22, F5, F9, F91etc.
Standard ANSI Class 150 Flanges-Class 2500 Flanges
DIN 6Bar 10Bar 16Bar 25Bar 40Bar
JIS 5K Flanges-20K Flanges
UNI 6Bar 10Bar 16Bar 25Bar 40Bar
EN 6Bar 10Bar 16Bar 25Bar 40Bar
TYPE 1.Welding neck Flange 2.Slip on
3.Blind flange 4.Long welding neck flange
5.Lap joint flange 6.Socket welding
7.Threaded flange 8.Flat flange
Surface Anti-rust oil, clear lacquer, Black lacquer, Yellow lacquer,hot-dipped Galvanized,electrical galvanized
Connection Welding, Threaded
Technical Forged, Plate Cutting, Casting
Size DN10-DN3600
Package 1. Standard export packaging (Plywood Case with plastic sheet lined,or wooden pallet with plastic film outside).

2. As Customers' Requirements
Heat Treatment Normalizing, Annealing, Quenching Tempering
Applications Water works, Shipbuilding industry, Petrochemical & Gas industry, Power industry, Valve industry,and general pipes connecting projects etc.

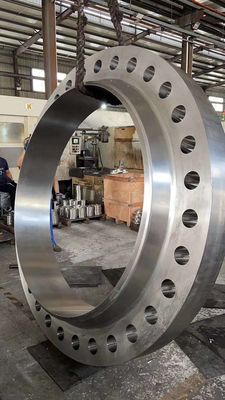

High Pressure Forged Stainless Steel Flange Large Diameter Carbon Steel Pipe Flanges 0

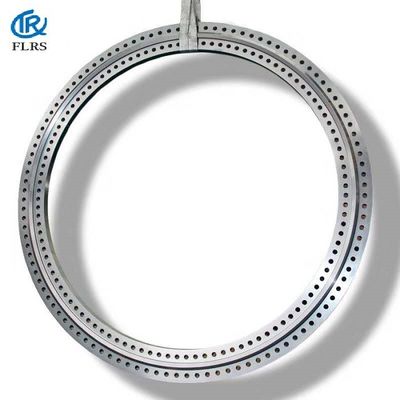

High Pressure Forged Stainless Steel Flange Large Diameter Carbon Steel Pipe Flanges 1

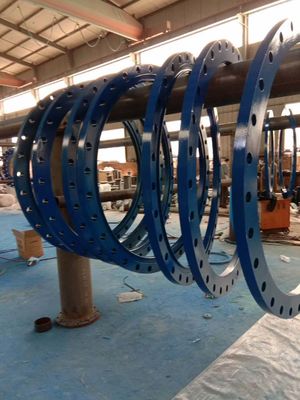

High Pressure Forged Stainless Steel Flange Large Diameter Carbon Steel Pipe Flanges 2

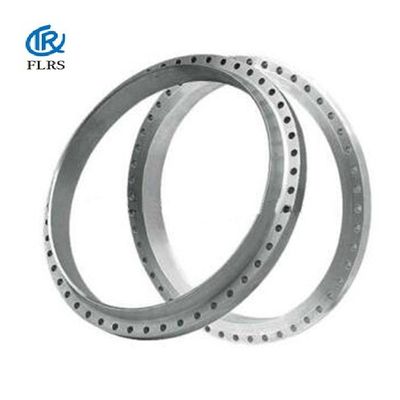

High Pressure Forged Stainless Steel Flange Large Diameter Carbon Steel Pipe Flanges 3
