DN150 Marine Cast Steel Flanged Gate Valve For Ship Building JIS F7366 PN10

Basic Information
Place of Origin: China
Brand Name: FLRS
Certification: ISO9001
Model Number: FV-06
Minimum Order Quantity: 5 PIECE
Packaging Details: carton
Delivery Time: 5-20DAYS
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 50000sets/month
Detail Information
Standard: JIS F7366 Body Material: Cast Steel SC450
Bonnet: Cast Steel SC450 Seat: Bronze Or Stainless Steel
Disc: Bronze Or Stainless Steel Stem: Brass Or SUS403
Gasket: Non-asbestos Handwheel: Cast Iron

Product Description

  • Marine Cast Steel Gate Valve is used to control the medium to open and close in the fuel oil, lubrication oil, steam, water pipe system with the temperature not over 300 degree centigrade. The gate valve is constructed of cast iron, cast steel, and cast copper. It is suitable for applications requiring low flow resistance and low medium pressure, as well as large diameter pipelines for seawater, freshwater, fuel oil, and lubricating oil.

  • Design Standard: JIS F7366-1996
  • Size: DN50-DN400
  • Test Standard: JIS 7400-1996
  • Hydraulic Test Pressure: Body- 2.1Mpa, Seat-1.54Mpa
  • Application: Shipbuilding, fire fighting, water, marine, oil and gas
  • Flange size as per JIS B2220 - 10K
  • Operation: Hand wheel, gear, square head

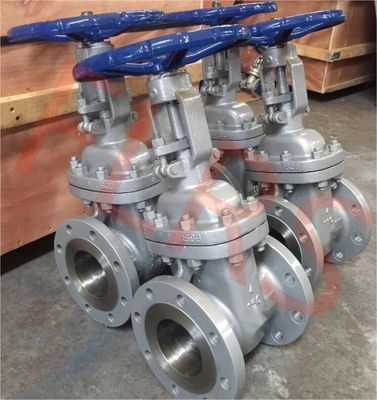

  • DN150 Marine Cast Steel Flanged Gate Valve For Ship Building JIS F7366 PN10 0

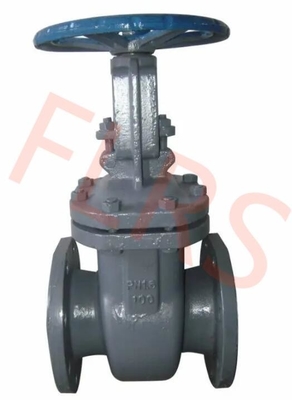

  • DN150 Marine Cast Steel Flanged Gate Valve For Ship Building JIS F7366 PN10 1
