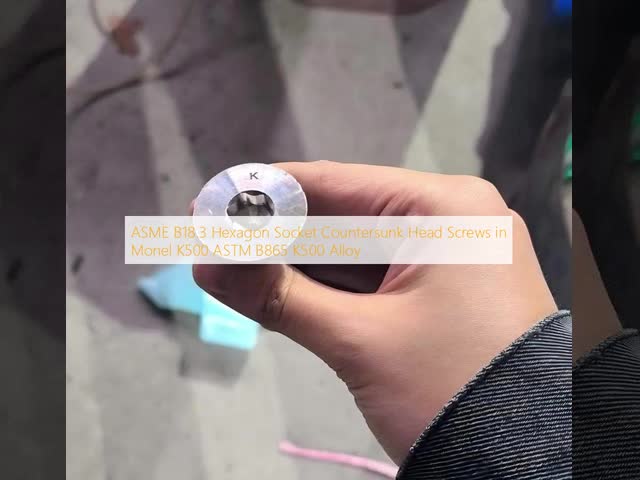

ASME B18.6.3 Hexagon Socket Countersunk Head Screws in Monel K500 ASTM B865 K500 Alloy
Product Summary
ASME B18.6.3 Hexagon Socket Countersunk Head Screws (ASTM B865 K500) Shaanxi Flourish Industrial Co., Ltd. is a leading global supplier of high-performance fasteners, specializing in manufacturing ASME B18.3 hexagon socket countersunk head screws crafted from ASTM B865 Monel K500 alloy. These screws ...
Basic Properties
country of origin
China
Brand Name
OEM
certificate
ISO9001
PRODUCT MODEL
FLRS-M001
Trading Properties
MOQ
200pcs
payment method
L/C,D/P,T/T,Western Union
Product Custom Attributes
Highlight
Monel K500 hexagon socket screws
,ASME B18.3 countersunk head screws
,ASTM B865 alloy fasteners
Thread Type:
UN,UNC, BSW
Delivery:
Within 20 Days
Assembly Content:
Nut,washer
Head Type:
Hex, Square,T-shape,special Shape
Driver Type:
Cross
Driving:
Slotted
Size:
1/4"-4"
Packing:
Carton+Plywood Case/pallet
Original:
China
Customized:
Available
Material:
Steel, Stainless Steel, Aluminum, Brass, Plastic
Standard:
Customized
Product Description
Detailed Specifications & Features
ASME B18.6.3 Hexagon Socket Countersunk Head Screws (ASTM B865 K500)
Shaanxi Flourish Industrial Co., Ltd. is a leading global supplier of high-performance fasteners, specializing in manufacturing ASME B18.3 hexagon socket countersunk head screws crafted from ASTM B865 Monel K500 alloy. These screws provide ultimate reliability for extreme industrial applications, combining ASME's rigorous dimensional precision with the exceptional strength and corrosion resistance of Monel K500. Backed by ISO-certified production and full material traceability, we deliver custom-engineered solutions that meet even the most demanding project requirements.
Product Overview
Our hexagon socket countersunk head screws adhere strictly to ASME B18.3 standards, featuring a flush-mount design that eliminates protrusions for smooth surfaces and enhanced safety. The Monel K500 alloy (UNS N05500, Werkstoff Nr. 2.4375) is a precipitation-hardened nickel-copper alloy, reinforced with aluminum and titanium to deliver three times the yield strength of conventional Monel 400. This unique combination makes the screws ideal for applications requiring both high load-bearing capacity and resistance to harsh corrosives.
Key Specifications
| Category | Details |
|---|---|
| Standards | ASME B18.3 (dimensional), ASTM B865 / ASME SB865 (material) |
| Material Grade | Monel K500 (UNS N05500) |
| Sizes | Diameter: 6mm-120mm; Length: 0.5m-12m (custom lengths available) |
| Finish | Bright, polished, or black (custom surface treatments upon request) |
| Tolerances | Complies with K10, H11, H8 standards for precision fitting |
| Processing | Cold-worked, hot-forged, solution-annealed, CNC-machined |
Material Properties (ASTM B865 K500)
Monel K500's exceptional performance stems from its optimized composition and mechanical characteristics:
Chemical Composition (min/max):
- Ni (63.0%), Cu (27.0-33.0%), Al (2.3-3.15%), Ti (0.35-0.85%), Fe (≤2.0%), C (≤0.25%)
Mechanical Performance:
- Tensile Strength: 1100 MPa (160,000 psi)
- Yield Strength (0.2% offset): 790 MPa (115,000 psi)
- Elongation: ≥20%
- Density: 8.44 g/cm³
- Melting Point: 1350°C (2460°F)
Corrosion Resistance:
Withstands seawater, acidic/alkaline media, and H₂S environments (corrosion rate <0.25mm/a), passing ASTM G28 A.
Core Advantages
- Superior Durability: Precipitation-hardened alloy resists deformation under high pressure and temperature fluctuations.
- Corrosion Immunity: Outperforms stainless steel in marine and chemical processing—ideal for offshore platforms and reactors.
- Precision Fit: ASME B18.3 compliance ensures consistent dimensions for seamless integration with existing systems.
- Versatile Machinability: Easy to weld, drill, and customize, supporting complex assembly requirements.
Applications
Our screws are trusted in industries where failure is not an option:
- Offshore: Pump shafts, valve components, and subsea equipment
- Chemical: Reactors, processing tanks, and pipeline fasteners
- Aerospace: High-stress structural assemblies
- Marine: Hull fittings and seawater-handling systems
Quality & Logistics
- Quality Control: Raw material traceability, NACE MR0175/ISO 15156 compliance, and batch testing
- Packaging: Waterproof polybags + plywood crates for corrosion protection during transit
- Lead Time: 10-45 days (expedited options available)
- Payment Terms: L/C, T/T, Western Union
Contact Us
Elevate your project with fasteners engineered for extreme performance. Contact our team today for custom quotes, technical data sheets, or sample requests.
Your Reliable Partner for High-Performance Fasteners.
